دیتاشیت LV8741V-TLM-E

LV8741V

مشخصات دیتاشیت

نام دیتاشیت LV8741V
حجم فایل 746.052 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

دانلود دیتاشیت LV8741V

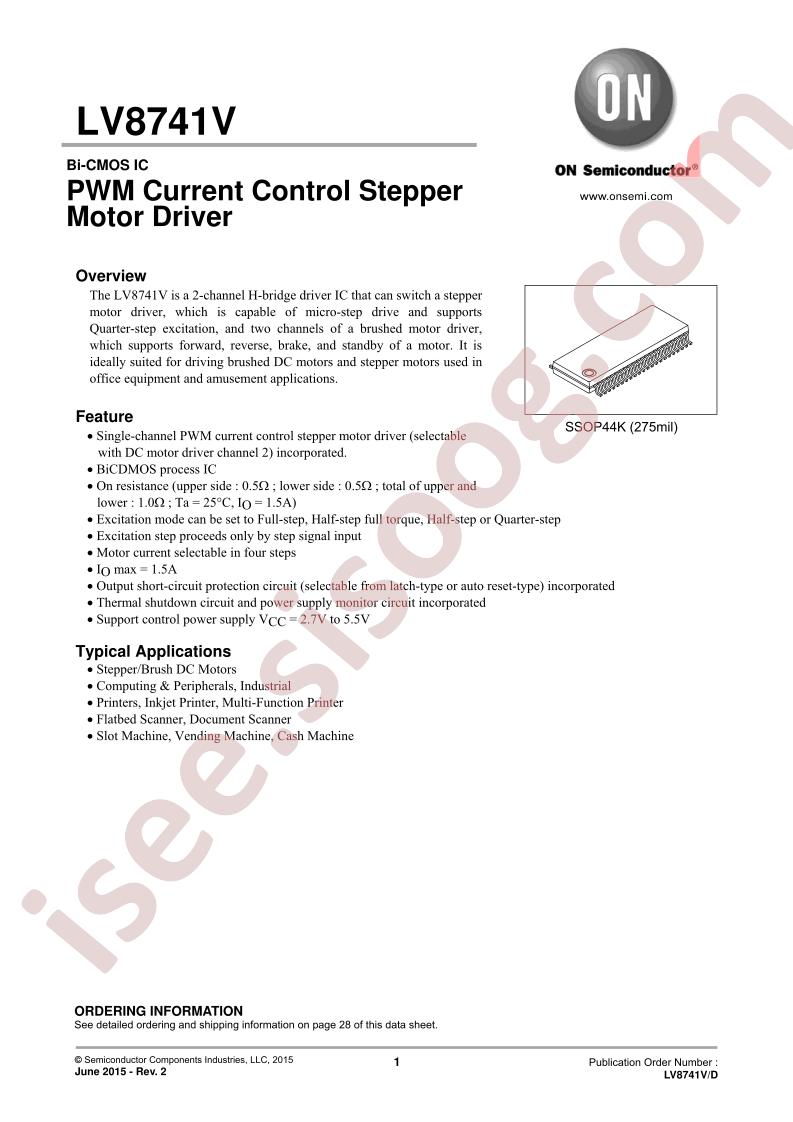

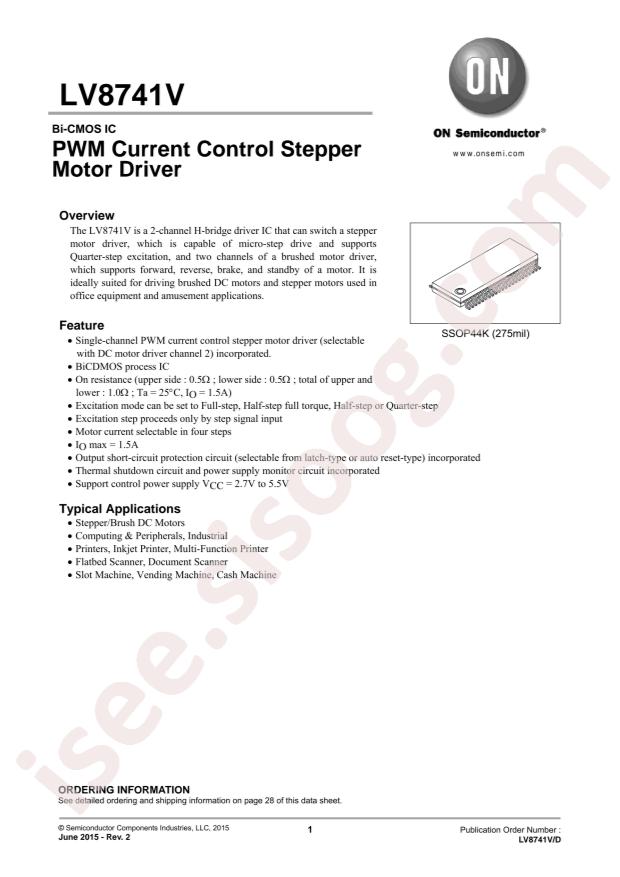

LV8741V Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Interface: Parallel
  • Technology: Bi-CMOS
  • Step Resolution: 1, 1/2, 1/4
  • Applications: General Purpose
  • Current - Output: 1.5A
  • Voltage - Supply: 2.7V ~ 5.5V
  • Voltage - Load: 9.5V ~ 35V
  • Operating Temperature: -20°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 44-LSSOP (0.220", 5.60mm Width) Exposed Pad
  • Supplier Device Package: 44-SSOP
  • Base Part Number: LV874
  • detail: Bipolar Motor Driver Bi-CMOS Parallel 44-SSOP
