FDS6570A دیتاشیت

FDS6570A

مشخصات دیتاشیت

نام دیتاشیت FDS6570A
حجم فایل 72.577 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

مشاهده دیتاشیت FDS6570A

دانلود دیتاشیت

سایر مستندات

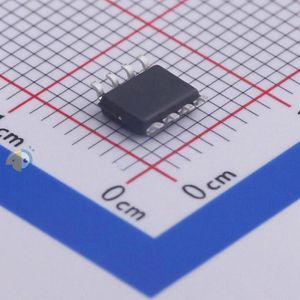

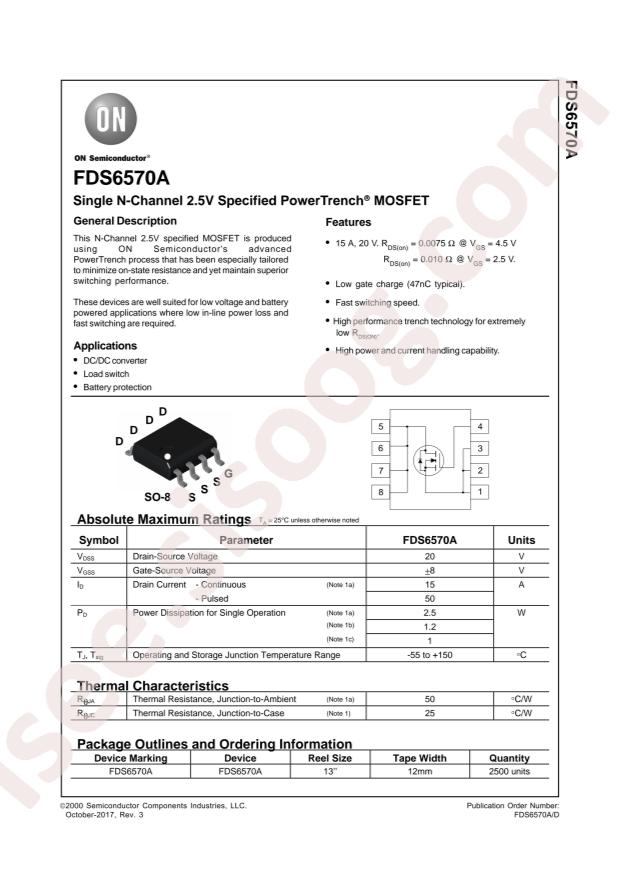

FDS6570A 5 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDS6570A
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.5W
  • Total Gate Charge (Qg@Vgs): 66nC@5V
  • Drain Source Voltage (Vdss): 20V
  • Input Capacitance (Ciss@Vds): 4700pF@10V
  • Continuous Drain Current (Id): 15A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 7.5mΩ@4.5V,15A
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 15A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 7.5mOhm @ 15A, 4.5V
  • Vgs(th) (Max) @ Id: 1.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 66nC @ 5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 4700pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 2.5W (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Base Part Number: FDS65
  • detail: N-Channel 20V 15A (Ta) 2.5W (Ta) Surface Mount 8-SOIC
