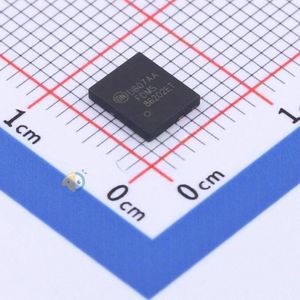

FDMS86202ET120 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FDMS86202ET120	دانلود دیتاشیت

RoHS: true
Type: -
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi FDMS86202ET120
Power Dissipation (Pd): -
Total Gate Charge (Qg@Vgs): -
Drain Source Voltage (Vdss): -
Input Capacitance (Ciss@Vds): -
Continuous Drain Current (Id): -
Gate Threshold Voltage (Vgs(th)@Id): -
Reverse Transfer Capacitance (Crss@Vds): -
Drain Source On Resistance (RDS(on)@Vgs,Id): -
Package: Power-56-8
Manufacturer: onsemi
Series: PowerTrench®
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 120V
Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta), 102A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Rds On (Max) @ Id, Vgs: 7.2mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id: 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 64nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 4585pF @ 60V
FET Feature: -
Power Dissipation (Max): 3.3W (Ta), 187W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Supplier Device Package: Power56
Package / Case: 8-PowerTDFN
Base Part Number: FDMS86
detail: N-Channel 120V 13.5A (Ta), 102A (Tc) 3.3W (Ta), 187W (Tc) Surface Mount Power56
