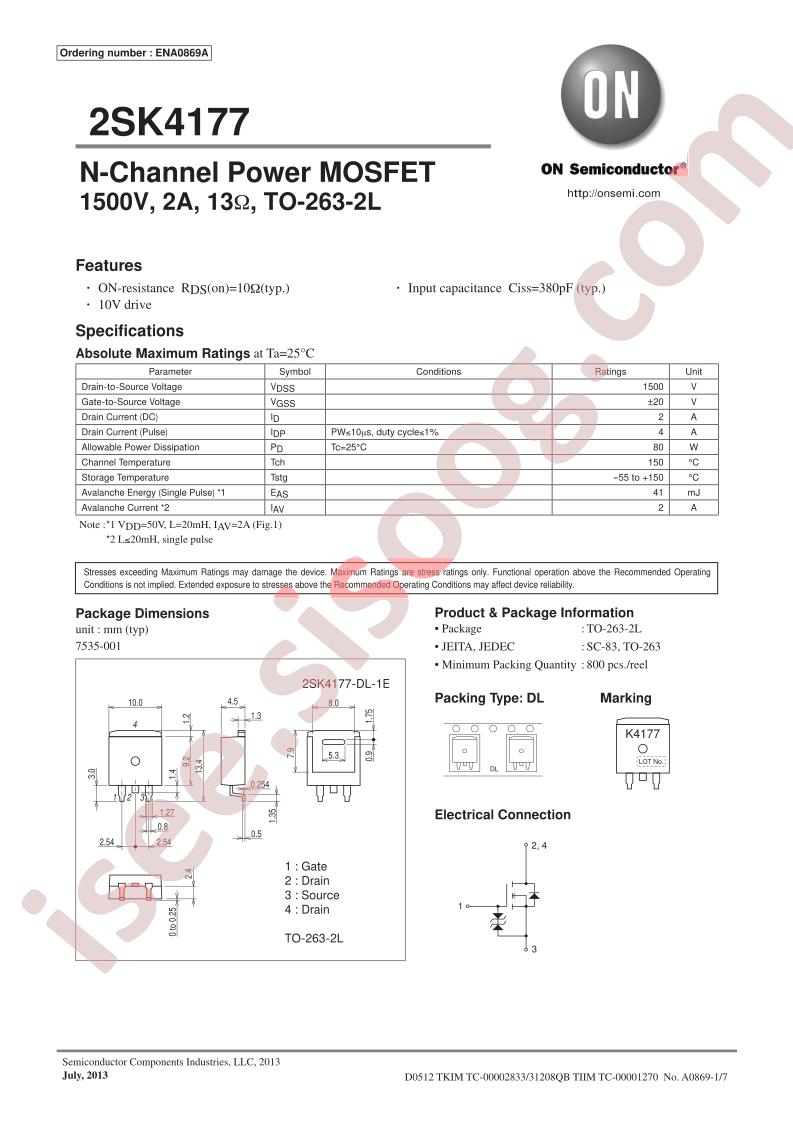

دیتاشیت 2SK4177-DL-1E
مشخصات دیتاشیت
| نام دیتاشیت |
2SK4177
|
| حجم فایل |
298.943
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Not For New Designs
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
1500V
-
Current - Continuous Drain (Id) @ 25°C:
2A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
13Ohm @ 1A, 10V
-
Vgs(th) (Max) @ Id:
-
-
Gate Charge (Qg) (Max) @ Vgs:
37.5nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
380pF @ 30V
-
FET Feature:
-
-
Power Dissipation (Max):
80W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
TO-263-2
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
2SK4177
-
detail:
N-Channel 1500V 2A (Ta) 80W (Tc) Surface Mount TO-263-2
