NDFP03N150CG دیتاشیت

NDFP03N150CG

مشخصات دیتاشیت

نام دیتاشیت NDFP03N150CG
حجم فایل 80.764 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

مشاهده دیتاشیت NDFP03N150CG

دانلود دیتاشیت

سایر مستندات

NDFP03N150C 5 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NDFP03N150CG
  • Power Dissipation (Pd): 2W
  • Drain Source Voltage (Vdss): 1.5kV
  • Continuous Drain Current (Id): 2.5A
  • Gate Threshold Voltage (Vgs(th)@Id): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 10.5Ω@10V,1A

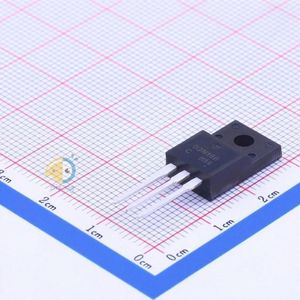

  • Package: TO-220
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 1500V
  • Current - Continuous Drain (Id) @ 25°C: 2.5A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 10.5Ohm @ 1A, 10V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 34nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 650pF @ 30V
  • FET Feature: -
  • Power Dissipation (Max): 2W (Ta), 32W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-3
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: NDFP03
  • detail: N-Channel 1500V 2.5A (Ta) 2W (Ta), 32W (Tc) Through Hole TO-220-3
