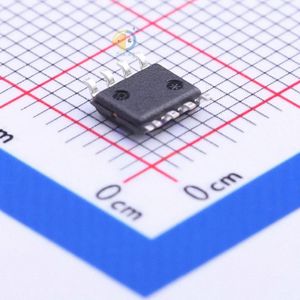

NCV5171EDR2G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NCV5171EDR2G	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;Flyback;SEPIC
Datasheet: onsemi NCV5171EDR2G
Output Type: Adjustable
Input Voltage: 2.7V~30V
Output Voltage: 1.276V~28.2V
Number of Outputs: 1
Switching Frequency: 280kHz
Output Current (Max): 1.5A
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: NO
Package: SOP-8
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive or Negative
Voltage - Input (Min): 2.7V
Voltage - Input (Max): 30V
Voltage - Output (Min/Fixed): 1.276V
Voltage - Output (Max): 28.2V
Current - Output: 1.5A (Switch)
Frequency - Switching: 280kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: NCV5171
detail: Buck, Boost, Flyback, Forward Converter, SEPIC Switching Regulator IC Positive or Negative Adjustable 1.276V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm Width)
