NCV51411DR2G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NCV51411DR2G	دانلود دیتاشیت

NCV51411 16 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: onsemi NCV51411DR2G
Output Type: Adjustable
Input Voltage: 4.5V~40V
Output Voltage: 1.27V~38V
Number of Outputs: 1
Switching Frequency: 260kHz
Output Current (Max): 1.5A
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: NO

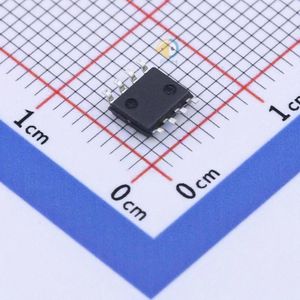

Package: SOIC-8
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Output Configuration: Positive
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 1.27V
Voltage - Output (Max): 38V
Current - Output: 1.5A
Frequency - Switching: 260kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: NCV51411
detail: Buck Switching Regulator IC Positive Adjustable 1.27V 1 Output 1.5A 8-SOIC (0.154", 3.90mm Width)
