دیتاشیت FDB9406-F085

FDB9406-F085

مشخصات دیتاشیت

نام دیتاشیت FDB9406-F085
حجم فایل 414.793 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت FDB9406-F085

FDB9406-F085 Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

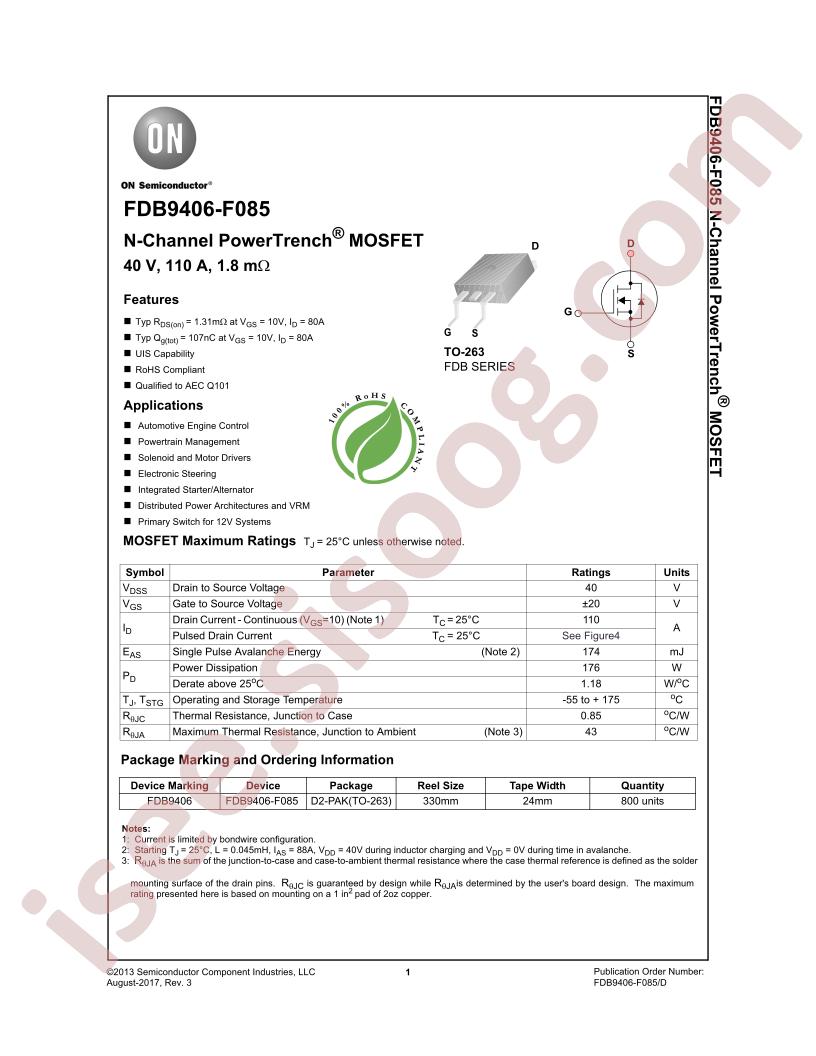

  • Datasheet: onsemi FDB9406-F085
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 176W
  • Total Gate Charge (Qg@Vgs): 107nC@0~10V
  • Drain Source Voltage (Vdss): 40V
  • Input Capacitance (Ciss@Vds): 7.71nF@25V
  • Continuous Drain Current (Id): 110A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.83V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 140pF@25V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.31mΩ@10V,80A
  • Package: TO-263
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101, PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40V
  • Current - Continuous Drain (Id) @ 25°C: 110A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.8mOhm @ 80A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 138nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 7710pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 176W (Tj)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D²PAK (TO-263)
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: FDB9406
  • detail: N-Channel 40V 110A (Tc) 176W (Tj) Surface Mount D²PAK (TO-263)
