NCP51705MNTXG دیتاشیت

NCP51705MNTXG

مشخصات دیتاشیت

نام دیتاشیت NCP51705MNTXG
حجم فایل 86.283 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

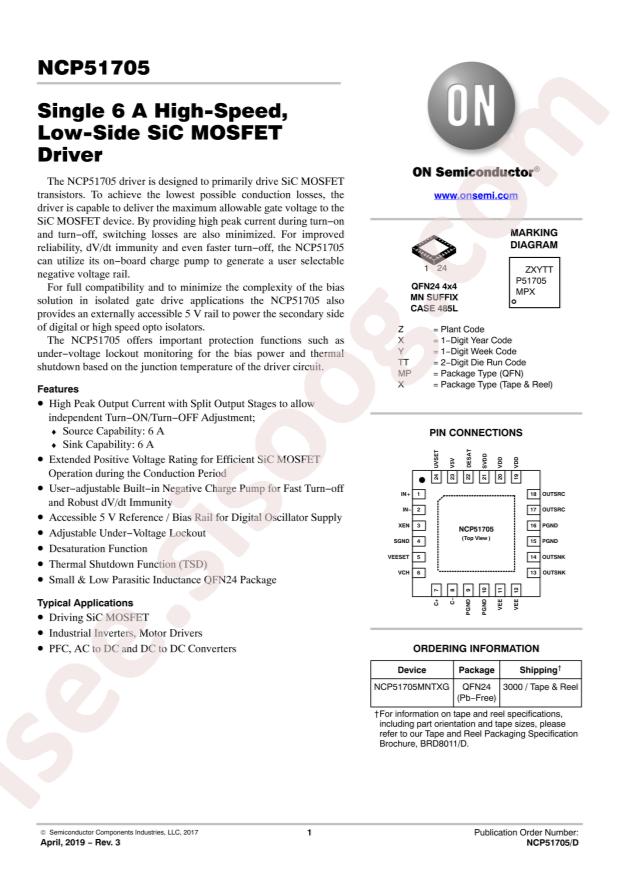

مشاهده دیتاشیت NCP51705MNTXG

دانلود دیتاشیت

سایر مستندات

NCP51705 21 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP51705MNTXG
  • Fall Time: 8ns
  • Load Type: MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 10V~22V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Peak Output Current(sink): 6A
  • Peak Output Current(source): 6A
  • Package: TO-252-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: SiC MOSFET
  • Voltage - Supply: 10V ~ 22V
  • Logic Voltage - VIL, VIH: 1.2V, 1.6V
  • Current - Peak Output (Source, Sink): 6A, 6A
  • Input Type: Inverting, Non-Inverting
  • Rise / Fall Time (Typ): 8ns, 8ns
  • Mounting Type: Surface Mount
  • Package / Case: 24-VFQFN Exposed Pad
  • Supplier Device Package: 24-QFN (4x4)
  • Base Part Number: NCP51705
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 24-QFN (4x4)
