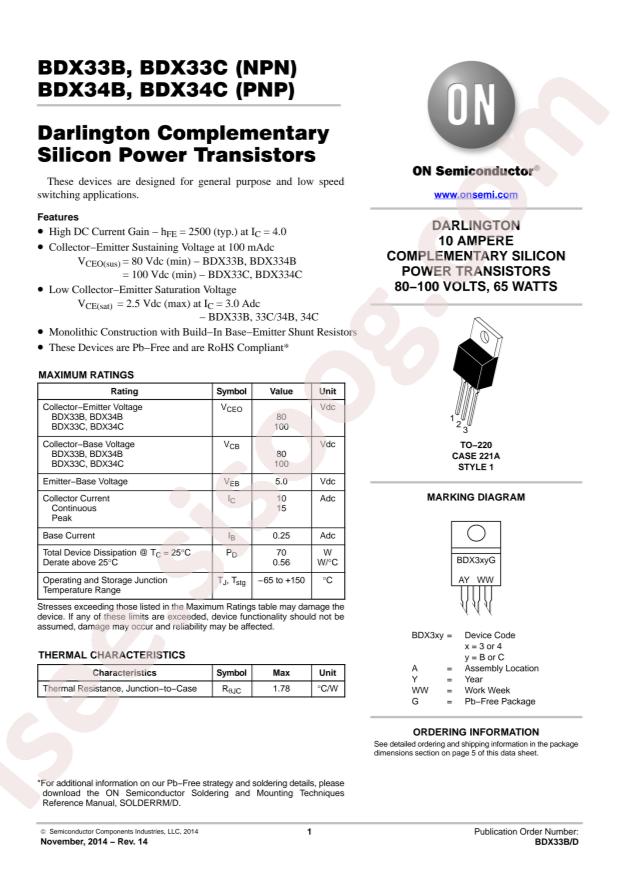

دیتاشیت BDX33CG
مشخصات دیتاشیت
| نام دیتاشیت |
BDX33/A/B/C
|
| حجم فایل |
162.731
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
onsemi BDX33CG
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
10A
-
Power Dissipation (Pd):
70W
-
Transition frequency (fT):
-
-
DC current gain (hFE@Vce,Ic):
750@3V,3A
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
500uA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
2.5V@3A,6mA
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
10A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
2.5V @ 6mA, 3A
-
Current - Collector Cutoff (Max):
500µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
750 @ 3A, 3V
-
Power - Max:
70W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
BDX33
-
detail:
Bipolar (BJT) Transistor NPN - Darlington 100V 10A 70W Through Hole TO-220AB
