دیتاشیت SBCP53-16T1G

مشخصات دیتاشیت

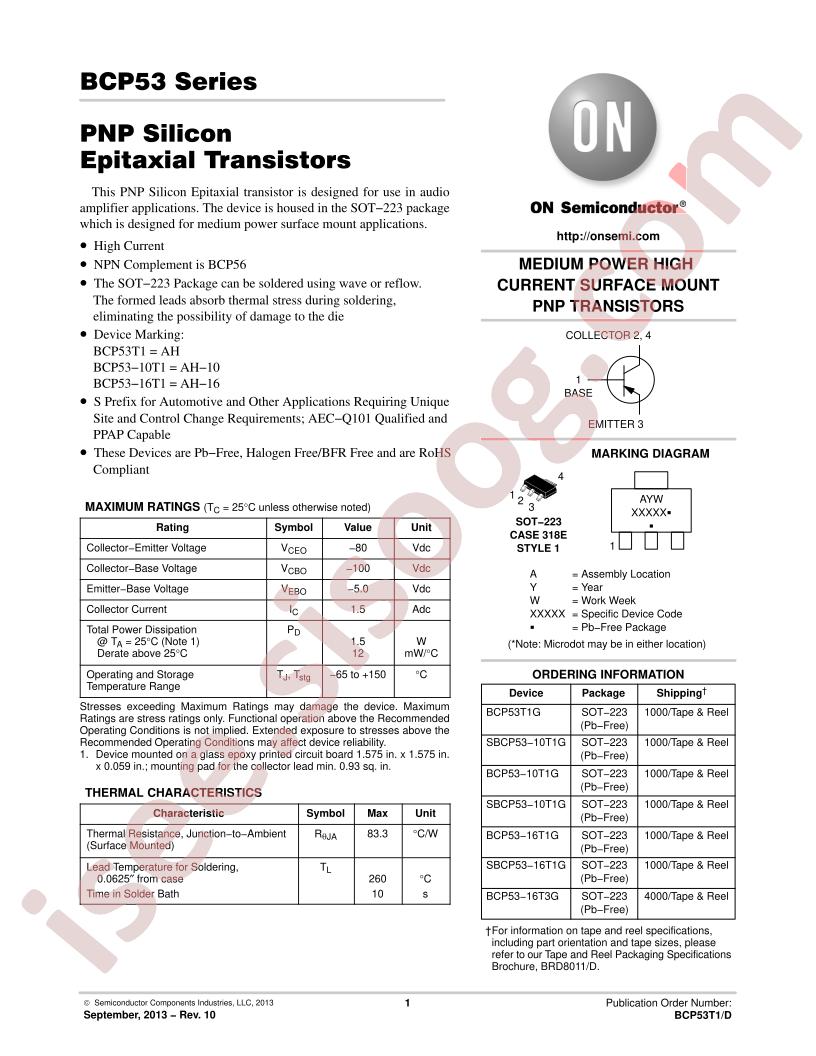

دانلود دیتاشیت BCP/SBCP53 Series	BCP/SBCP53 Series Datasheet

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
Datasheet: onsemi SBCP53-16T1G
Transistor Type: PNP
Operating Temperature: -65°C~+150°C@(Tj)
Collector Current (Ic): 1.5A
Power Dissipation (Pd): 1.5W
Transition Frequency (fT): 50MHz
DC Current Gain (hFE@Ic,Vce): 100@150mA,2V
Collector Cut-Off Current (Icbo): 100nA
Collector-Emitter Breakdown Voltage (Vceo): 80V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@500mA,50mA
Package: SOT-223
Manufacturer: onsemi
Series: Automotive, AEC-Q101
Packaging: Cut Tape (CT)
Part Status: Active
Current - Collector (Ic) (Max): 1.5A
Voltage - Collector Emitter Breakdown (Max): 80V
Vce Saturation (Max) @ Ib, Ic: 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max): 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 2V
Power - Max: 1.5W
Frequency - Transition: 50MHz
Mounting Type: Surface Mount
Package / Case: TO-261-4, TO-261AA
Supplier Device Package: SOT-223-3
Base Part Number: SBCP53
detail: Bipolar (BJT) Transistor PNP 80V 1.5A 50MHz 1.5W Surface Mount SOT-223-3
