- دیتاشیت H11AG1SR2M

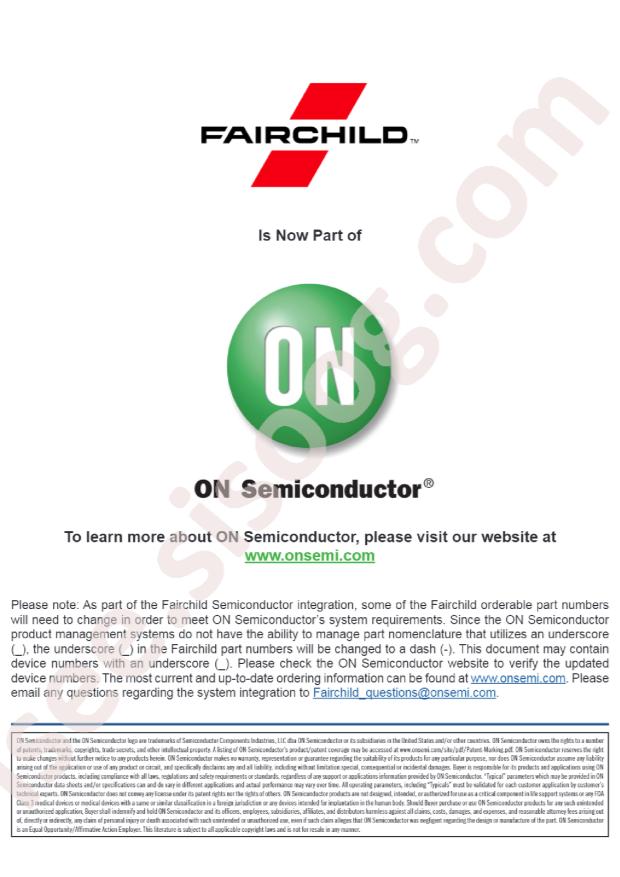

H11AG1SR2M دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | H11AG1SR2M |
|---|---|
| حجم فایل | 68.843 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |
دانلود دیتاشیت H11AG1SR2M |
دانلود دیتاشیت |
|---|
سایر مستندات
H11AG1M 14 pages
H11AG1SR2M 9 pages
مشخصات فنی
- RoHS: true
- Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Phototransistor Output
- Datasheet: onsemi H11AG1SR2M
- Fall time: -
- Rise time: -
- Output Type: Phototransistor
- Output Current: 50mA
- Forward Voltage: 1.25V
- Reverse Voltage: 6V
- Number of Outputs: 1
- Input voltage type: DC
- Operating Temperature: -40°C~+100°C
- Receiving End Voltage: 30V
- Isolation Voltage(rms): 4170V
- Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF): 0.4V@0.5mA,2mA
- Package: SMD-6P
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Number of Channels: 1
- Voltage - Isolation: 4170Vrms
- Current Transfer Ratio (Min): 100% @ 1mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 5µs, 5µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Voltage - Output (Max): 30V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 50mA
- Vce Saturation (Max): 400mV
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Gull Wing
- Supplier Device Package: 6-SMD
- Base Part Number: H11A
- detail: Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
