- دیتاشیت MC7915ACTG

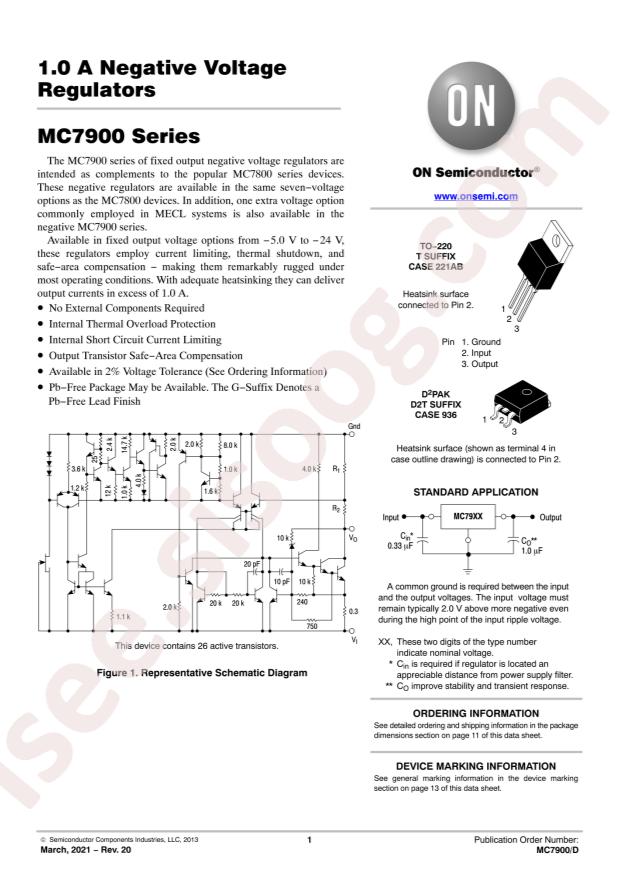

MC7915ACTG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC7915ACTG |
|---|---|
| حجم فایل | 85.512 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت MC7915ACTG |
دانلود دیتاشیت |
|---|
سایر مستندات
TO220B03 Pkg Drawing 1 pages
MC7900 Series 15 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi MC7915ACTG
- Output Current: 1A
- Output Voltage: 15V
- Dropout Voltage: 1.3V@(1A)
- Output Polarity: Negative
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: 0°C~+125°C
- Power Supply Rejection Ratio (PSRR): 60dB@(120Hz)
- Package: TO-220
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Output Configuration: Negative
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): -35V
- Voltage - Output (Min/Fixed): -15V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1.3V @ 1A (Typ)
- Current - Output: 1A
- PSRR: 60dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: MC7915
- detail: Linear Voltage Regulator IC 1 Output 1A TO-220AB
