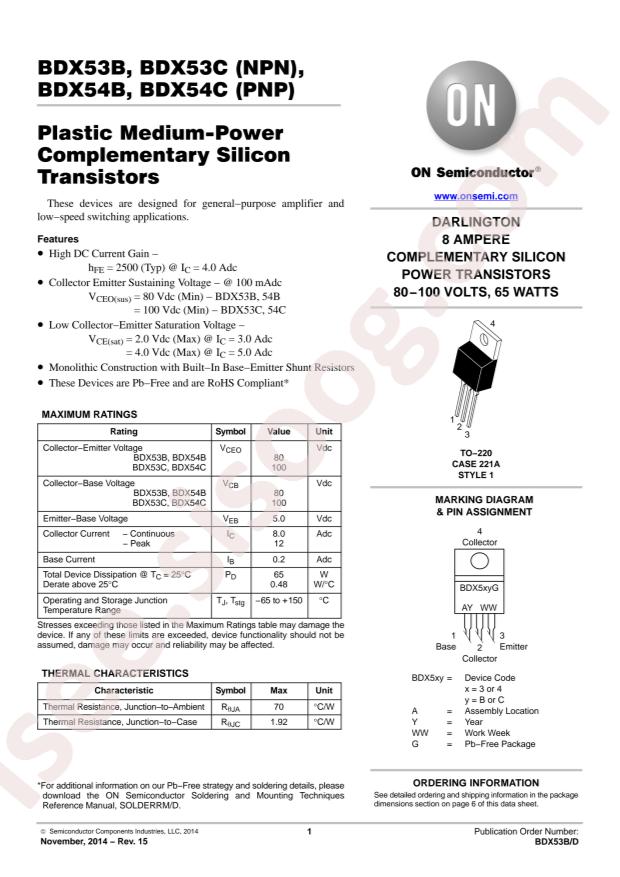

BDX53CG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
BDX53CG
|
|
حجم فایل
|
89.061
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
onsemi BDX53CG
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
8A
-
Power Dissipation (Pd):
65W
-
Transition frequency (fT):
-
-
DC current gain (hFE@Vce,Ic):
750@3V,3A
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
500uA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
2V@3A,12mA
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
8A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
2V @ 12mA, 3A
-
Current - Collector Cutoff (Max):
500µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
750 @ 3A, 3V
-
Power - Max:
65W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
BDX53
-
detail:
Bipolar (BJT) Transistor NPN - Darlington 100V 8A 65W Through Hole TO-220AB
