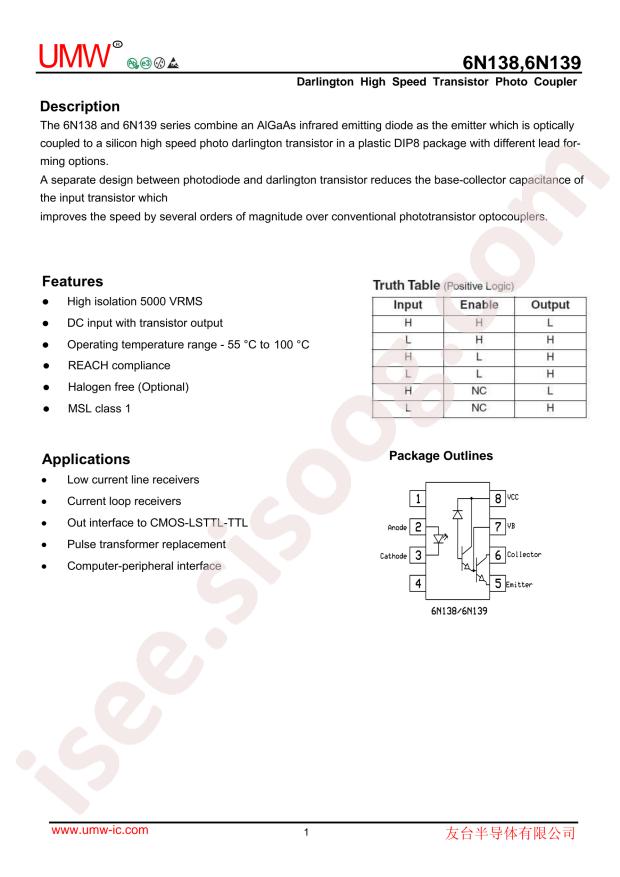

6N138M دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | 6N138M |
|---|---|
| حجم فایل | 62.473 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت 6N138M |
دانلود دیتاشیت |
|---|
سایر مستندات
6N138M,139M,HCPL273xM 18 pages
6N138M 15 pages
مشخصات فنی
- RoHS: true
- Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
- Datasheet: UMW(Youtai Semiconductor Co., Ltd.) 6N138M
- Package: DIP-8
- Manufacturer: UMW(Youtai Semiconductor Co., Ltd.)
- Input Type: DC
- Supply Voltage: -
- Number of Channels: 1
- Operating Temperature: -40°C~+100°C
- Isolation Voltage(rms): 5000V
- Propagation Delay tpLH/tpHL: 50us;15us
- Common Mode Transient Immunity (CMTI): 1kV/us
- Series: -
- Packaging: Tube
- Part Status: Active
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 300% @ 1.6mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 1µs, 7.3µs
- Rise / Fall Time (Typ): -
- Output Type: Darlington with Base
- Voltage - Output (Max): 7V
- Current - Output / Channel: 60mA
- Voltage - Forward (Vf) (Typ): 1.3V
- Current - DC Forward (If) (Max): 20mA
- Vce Saturation (Max): -
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Base Part Number: 6N138
- detail: Optoisolator Darlington with Base Output 5000Vrms 1 Channel 8-DIP
