LV8402GP-TE-L-H دیتاشیت

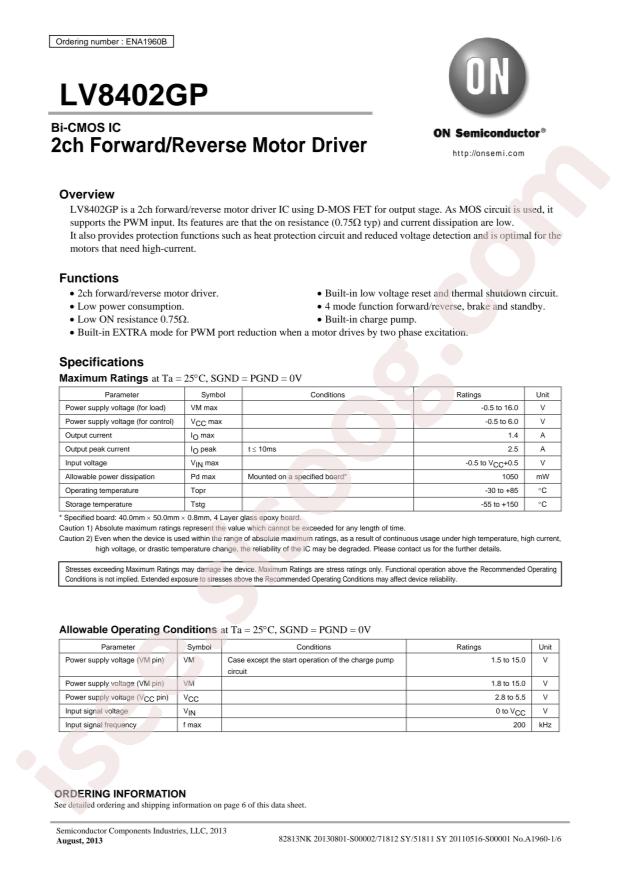

LV8402GP-TE-L-H

مشخصات دیتاشیت

نام دیتاشیت LV8402GP-TE-L-H
حجم فایل 81.356 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت LV8402GP-TE-L-H

دانلود دیتاشیت

سایر مستندات

LV8402GP 6 pages

LV8402GP Application Note 21 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: onsemi LV8402GP-TE-L-H
  • Interface: Parallel
  • Output Current: 1.4A
  • Supply Voltage: 2.8V~5.5V
  • Operating Temperature: -30°C~+85°C@(Ta)
  • Package: VCT-24
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Technology: Bi-CMOS
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 1.4A
  • Voltage - Supply: 2.8V ~ 5.5V
  • Voltage - Load: 1.5V ~ 15V
  • Mounting Type: Surface Mount
  • Package / Case: 24-WFQFN
  • Supplier Device Package: 24-VCT (3.5x3.5)
  • Base Part Number: LV840
  • detail: Motor Driver Bi-CMOS Parallel 24-VCT (3.5x3.5)
