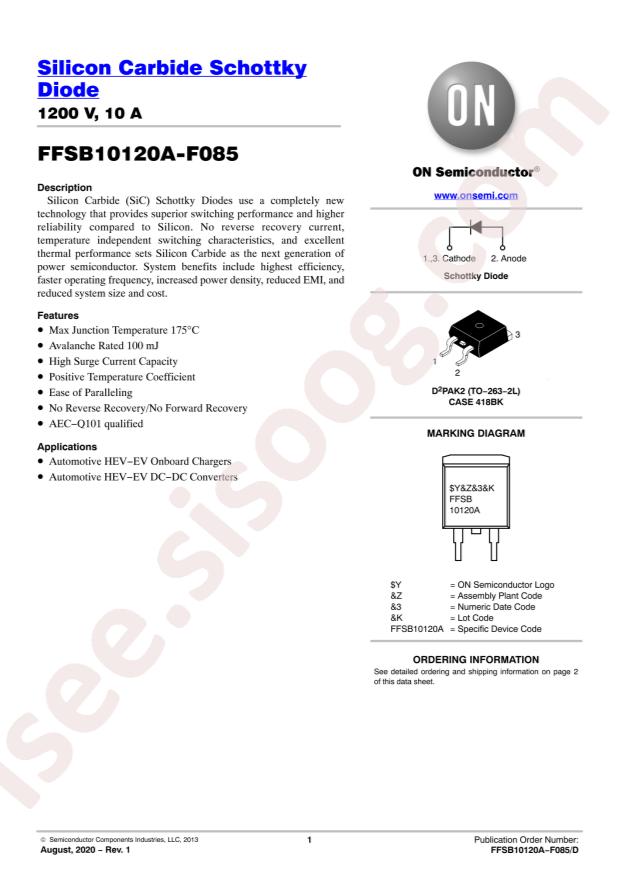

FFSB10120A-F085 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FFSB10120A-F085
|
|
حجم فایل
|
60.931
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi FFSB10120A-F085
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
1.2kV
-
Forward Voltage (Vf@If):
1.45V@10A
-
Reverse Leakage Current (Ir):
200uA@1.2kV
-
Average Rectified Current (Io):
21A
-
Package:
TO-263
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Diode Type:
Silicon Carbide Schottky
-
Voltage - DC Reverse (Vr) (Max):
1200V
-
Current - Average Rectified (Io):
21A (DC)
-
Voltage - Forward (Vf) (Max) @ If:
1.75V @ 10A
-
Speed:
No Recovery Time > 500mA (Io)
-
Reverse Recovery Time (trr):
0ns
-
Current - Reverse Leakage @ Vr:
200µA @ 1200V
-
Capacitance @ Vr, F:
612pF @ 1V, 100kHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
TO-263 (D²Pak)
-
Operating Temperature - Junction:
-55°C ~ 175°C
-
Base Part Number:
FFSB10
-
detail:
Diode Silicon Carbide Schottky 1200V 21A (DC) Surface Mount TO-263 (D²Pak)
