دیتاشیت 2SA2210-1E

2SA2210

مشخصات دیتاشیت

نام دیتاشیت 2SA2210
حجم فایل 247.735 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت 2SA2210

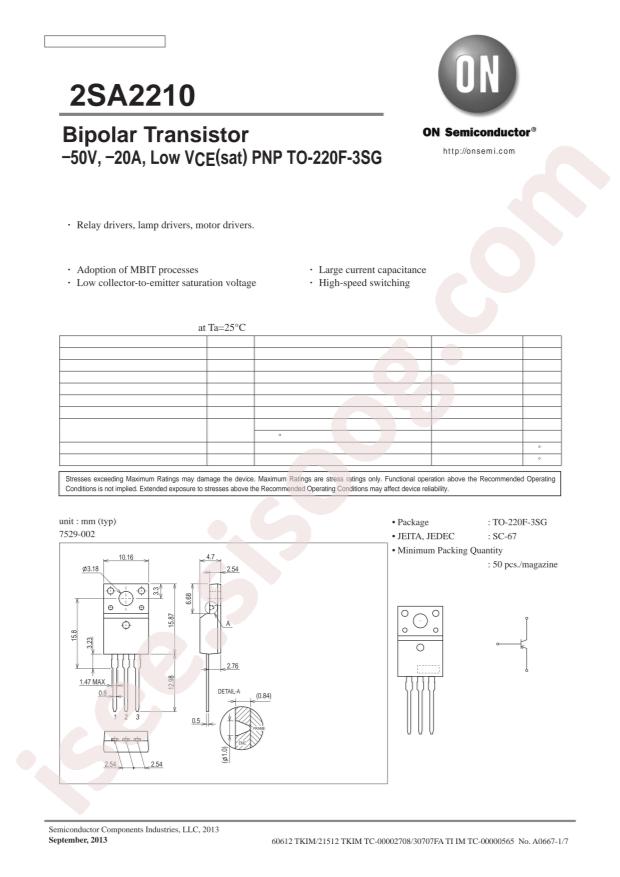

2SA2210 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi 2SA2210-1E
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 20A
  • Power Dissipation (Pd): 30W
  • Transition Frequency (fT): 140MHz
  • DC Current Gain (hFE@Ic,Vce): 150@1A,2V
  • Collector Cut-Off Current (Icbo): 10uA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 200mV@7A,350mA
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 20A
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Vce Saturation (Max) @ Ib, Ic: 500mV @ 350mA, 7A
  • Current - Collector Cutoff (Max): 10µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 150 @ 1A, 2V
  • Power - Max: 2W
  • Frequency - Transition: 140MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220F-3SG
  • Base Part Number: 2SA2210
  • detail: Bipolar (BJT) Transistor PNP 50V 20A 140MHz 2W Through Hole TO-220F-3SG
