دیتاشیت LM2574N-5G
مشخصات دیتاشیت
| نام دیتاشیت | LM2574, NCV2574 Series |
|---|---|
| حجم فایل | 302.312 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت LM2574, NCV2574 Series |

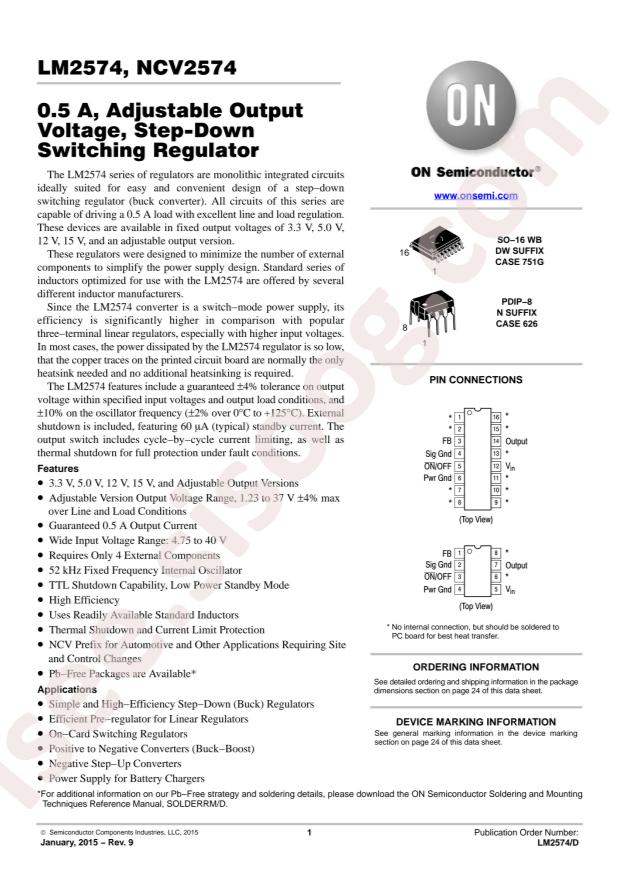

LM2574, NCV2574 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Step-down type;Buck-boost type
- Topology: Step-down;Boost;Step-down-Boost
- Datasheet: onsemi LM2574N-5G
- Output Type: Fixed
- Input Voltage: 4.75V~40V
- Output Voltage: 5V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 500mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: DIP-8
- Manufacturer: onsemi
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive or Negative
- Voltage - Input (Min): 4.75V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Current - Output: 500mA
- Frequency - Switching: 52kHz
- Synchronous Rectifier: No
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-PDIP
- Base Part Number: LM2574
- detail: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Fixed 5V 1 Output 500mA 8-DIP (0.300", 7.62mm)
