دیتاشیت FDP52N20

TO220B03 Pkg Drawing

مشخصات دیتاشیت

نام دیتاشیت TO220B03 Pkg Drawing
حجم فایل 99.003 کیلوبایت
نوع فایل pdf
تعداد صفحات 1

دانلود دیتاشیت TO220B03 Pkg Drawing

TO220B03 Pkg Drawing Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

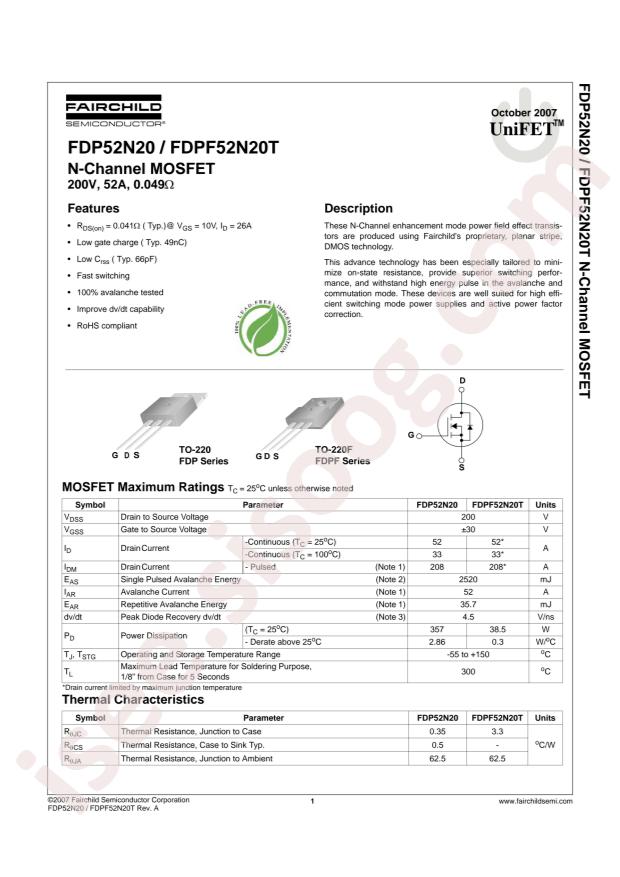

  • Datasheet: onsemi FDP52N20
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 357W
  • Total Gate Charge (Qg@Vgs): 63nC@10V
  • Drain Source Voltage (Vdss): 200V
  • Input Capacitance (Ciss@Vds): 2900pF@25V
  • Continuous Drain Current (Id): 52A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 49mΩ@10V,26A
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: UniFET™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 200V
  • Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 49mOhm @ 26A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 63nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 2900pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 357W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-3
  • Package / Case: TO-220-3
  • Base Part Number: FDP52
  • detail: N-Channel 200V 52A (Tc) 357W (Tc) Through Hole TO-220-3
