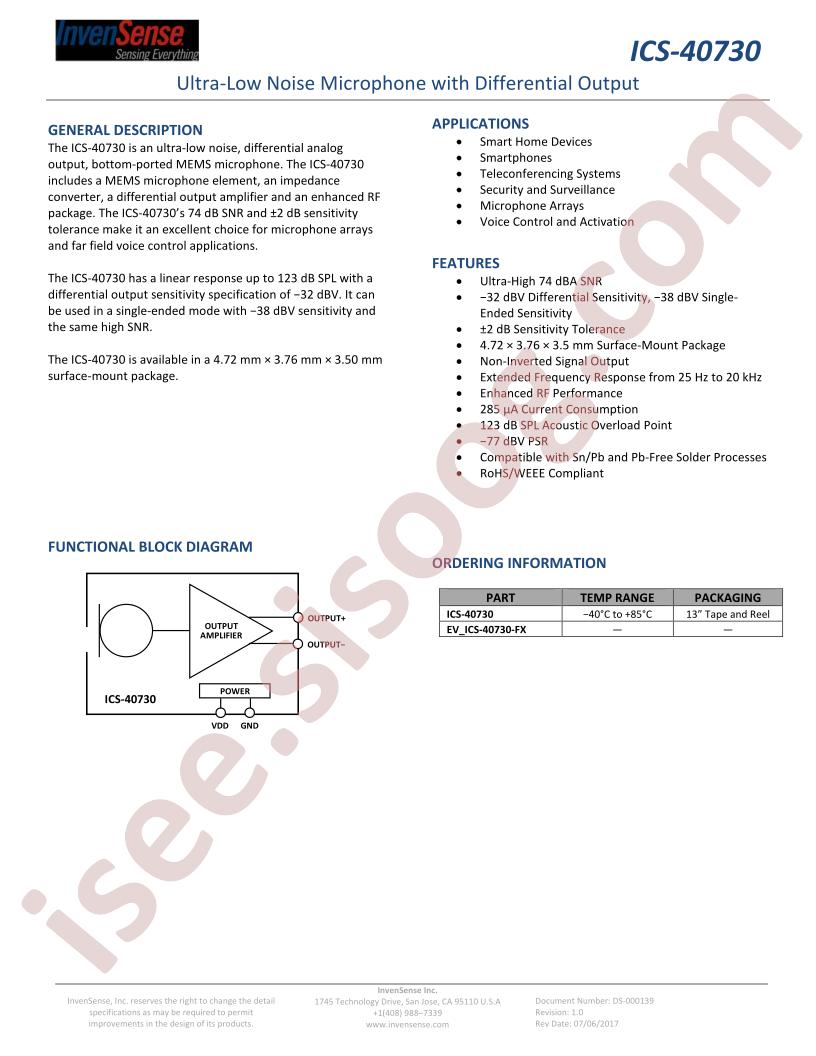

ICS-40730 Datasheet
Datasheet specifications
| Datasheet's name | ICS-40730 Datasheet |
|---|---|
| File size | 433.995 KB |
| File type | |
| Number of pages | 15 |
Download Datasheet ICS-40730 Datasheet |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: TDK InvenSense
- Series: ICS-40730
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: MEMS (Silicon)
- Output Type: Analog
- Direction: Noise Cancelling
- Frequency Range: 25Hz ~ 20kHz
- Sensitivity: -32dB ±2dB @ 124dB SPL
- S/N Ratio: 74dB
- Impedance: 750 Ohms
- Voltage Range: 1.5V ~ 3.63V
- Current - Supply: 285µA
- Port Location: Bottom
- Ratings: -
- Termination: Solder Pads
- Size / Dimension: 0.186" L x 0.148" W (4.72mm x 3.76mm)
- Height (Max): 0.142" (3.60mm)
- Shape: Rectangular
- detail: 25Hz ~ 20kHz Analog Microphone MEMS (Silicon) 1.5V ~ 3.63V Noise Cancelling (-32dB ±2dB @ 124dB SPL) Solder Pads
