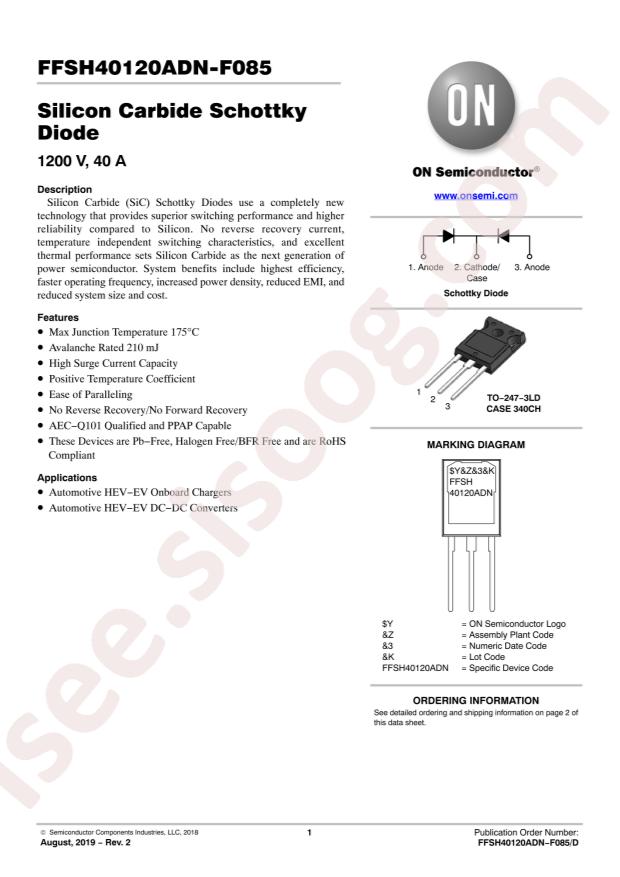

دیتاشیت FFSH40120ADN-F085

FFSH40120A

مشخصات دیتاشیت

نام دیتاشیت FFSH40120A
حجم فایل 458.992 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

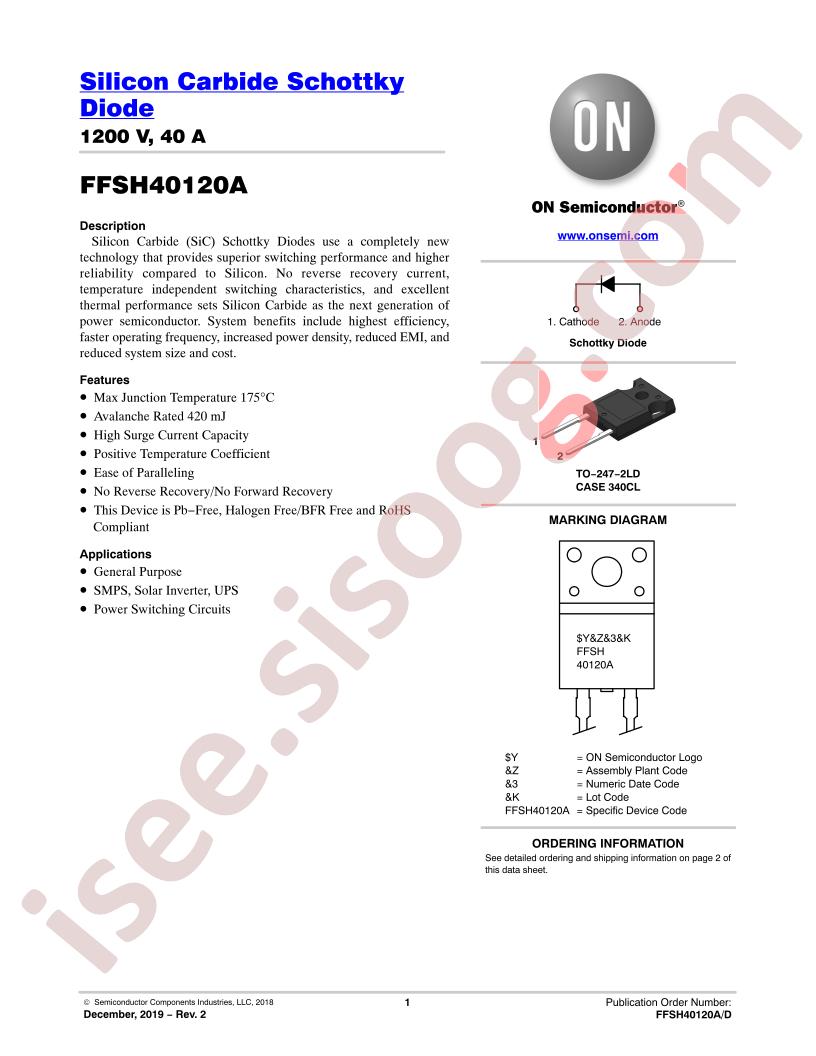

دانلود دیتاشیت FFSH40120A

FFSH40120A Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: onsemi FFSH40120ADN-F085
  • Diode Configuration: Dual Common Cathode
  • Reverse Voltage (Vr): 1.2kV
  • Forward Voltage (Vf@If): 1.45V@20A
  • Reverse Leakage Current (Ir): 200uA@1.2kV
  • Average Rectified Current (Io): 25A
  • Package: TO-247-3
  • Manufacturer: onsemi
  • Series: -
  • Part Status: Active
  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 1200V
  • Current - Average Rectified (Io): 61A (DC)
  • Speed: No Recovery Time > 500mA (Io)
  • Reverse Recovery Time (trr): 0ns
  • Current - Reverse Leakage @ Vr: 200µA @ 1200V
  • Capacitance @ Vr, F: 2250pF @ 1V, 100kHz
  • Mounting Type: Through Hole
  • Package / Case: TO-247-2
  • Supplier Device Package: TO-247-2
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Base Part Number: FFSH40
  • detail: Diode Silicon Carbide Schottky 1200V 61A (DC) Through Hole TO-247-2
