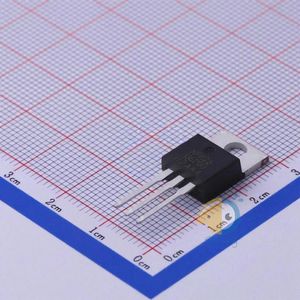

MUR620CTG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MUR620CTG	دانلود دیتاشیت

RoHS: true
Category: Diodes/Diodes - Fast Recovery Rectifiers

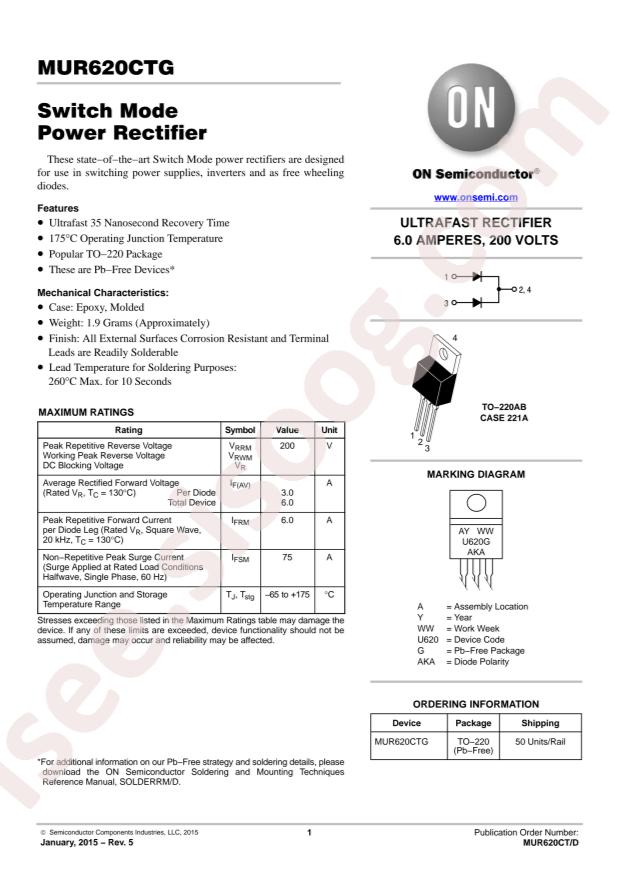

Datasheet: onsemi MUR620CTG
Diode Configuration: Dual Common Cathode
Reverse Voltage (Vr): 200V
Operating Temperature: -65°C~+175°C@(Tj)
Forward Voltage (Vf@If): 940mV@3A
Reverse Leakage Current: 3uA@200V
Reverse Recovery Time (trr): 30ns
Average Rectified Current (Io): 6A
Package: TO-220AB-3
Manufacturer: onsemi
Series: SWITCHMODE™
Packaging: Tube
Part Status: Obsolete
Diode Type: Standard
Voltage - DC Reverse (Vr) (Max): 200V
Current - Average Rectified (Io) (per Diode): 3A
Voltage - Forward (Vf) (Max) @ If: 975mV @ 3A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr: 5µA @ 200V
Operating Temperature - Junction: -65°C ~ 175°C
Mounting Type: Through Hole
Package / Case: TO-220-3
Supplier Device Package: TO-220AB
Base Part Number: MUR62
detail: Diode Array 1 Pair Common Cathode Standard 200V 3A Through Hole TO-220-3
