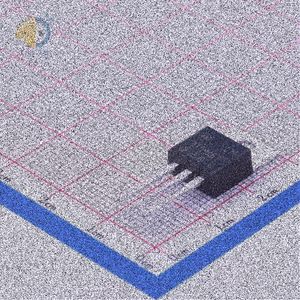

LM317MABTG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM317MABTG
|
|
حجم فایل
|
86.005
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

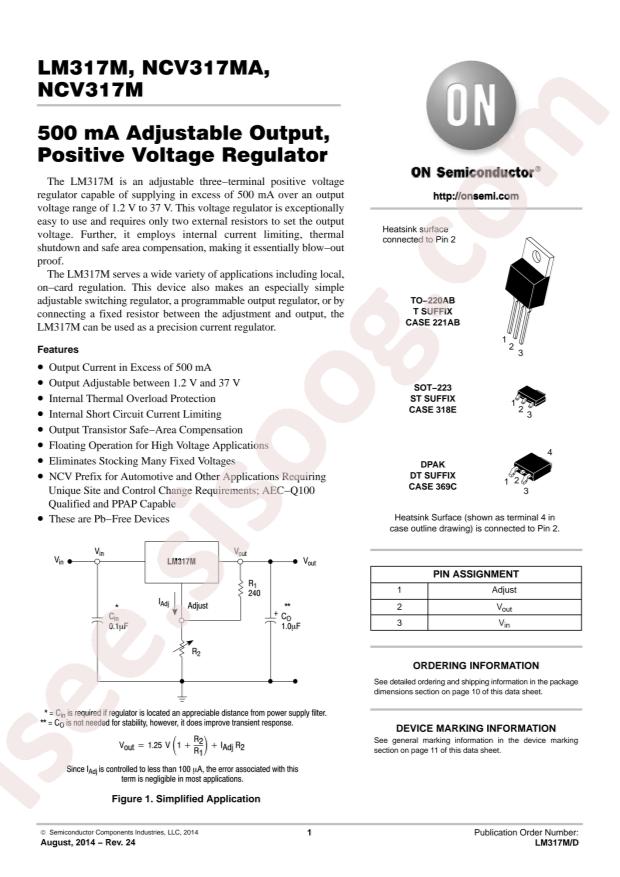

onsemi LM317MABTG
-
Output Type:
Adjustable
-
Output Current:
500mA
-
Output Voltage:
1.2V~37V
-
Dropout Voltage:
-
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
40V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
10mA
-
Power Supply Rejection Ratio (PSRR):
80dB@(120Hz)
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
1.2V
-
Voltage - Output (Max):
37V
-
Voltage Dropout (Max):
-
-
Current - Output:
500mA
-
Current - Quiescent (Iq):
10mA
-
PSRR:
80dB ~ 65dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
LM317
-
detail:
Linear Voltage Regulator IC 1 Output 500mA TO-220AB
