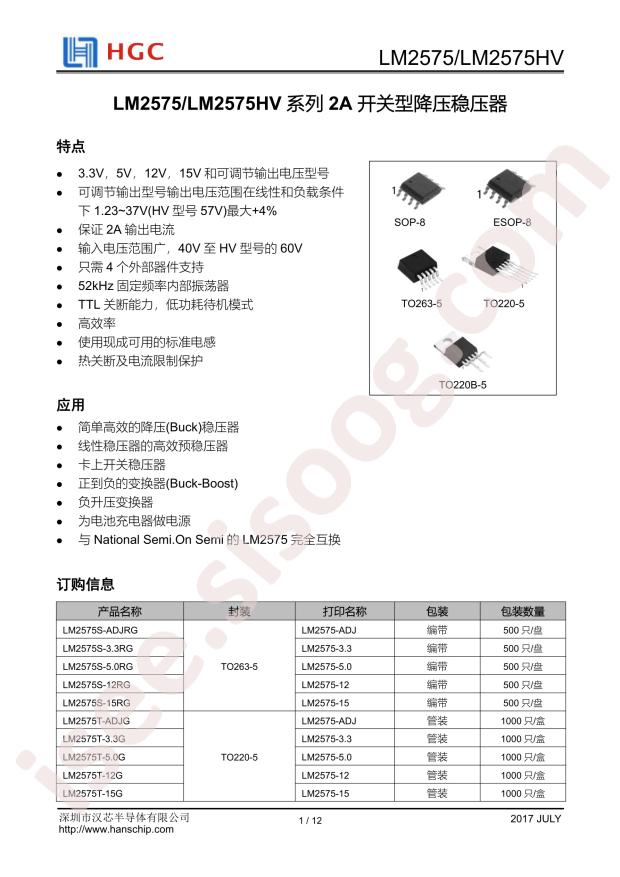

LM2575T-12G Datasheet
Datasheet specifications
| Datasheet's name | LM2575T-12G |
|---|---|
| File size | 74.942 KB |
| File type | |
| Number of pages | 12 |
Download Datasheet LM2575T-12G |
Download Datasheet |
|---|
Other documentations
LM2575 28 pages
LM2575D2T-3.3R4G 28 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Datasheet: HANSCHIP semiconductor LM2575T-12G
- Package: TO-220-5
- Manufacturer: HANSCHIP semiconductor
- Function: Step-down type
- Topology: Step-down
- Output Type: Fixed
- Input Voltage: 4.75V~40V
- Output Voltage: 12V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 1A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 4.75V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 12V
- Voltage - Output (Max): -
- Current - Output: 1A
- Frequency - Switching: 52kHz
- Synchronous Rectifier: No
- Mounting Type: Through Hole
- Package / Case: TO-220-5
- Supplier Device Package: TO-220-5
- Base Part Number: LM2575
- detail: Buck Switching Regulator IC Positive Fixed 12V 1 Output 1A TO-220-5
