FSDM0565RBWDTU دیتاشیت

FSDM0565RBWDTU

مشخصات دیتاشیت

نام دیتاشیت FSDM0565RBWDTU
حجم فایل 74.314 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

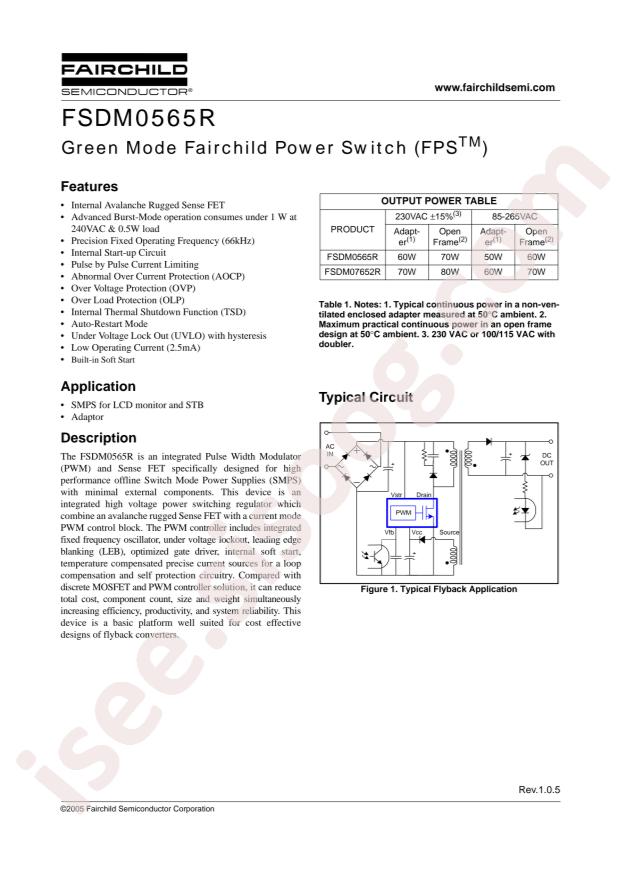

مشاهده دیتاشیت FSDM0565RBWDTU

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Datasheet: onsemi FSDM0565RBWDTU
  • Package: TO-220-6
  • Manufacturer: onsemi
  • Series: FPS™
  • Packaging: Tube
  • Part Status: Not For New Designs
  • Output Isolation: Isolated
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 650V
  • Topology: Flyback
  • Voltage - Start Up: 12V
  • Voltage - Supply (Vcc/Vdd): 8V ~ 20V
  • Duty Cycle: 82%
  • Frequency - Switching: 66kHz
  • Power (Watts): 70W
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage
  • Control Features: -
  • Operating Temperature: -25°C ~ 85°C (TA)
  • Package / Case: TO-220-6 Full Pack, Formed Leads
  • Supplier Device Package: TO-220F-6L (Forming)
  • Mounting Type: Through Hole
  • Base Part Number: FSDM05
  • detail: Converter Offline Flyback Topology 66kHz TO-220F-6L (Forming)
