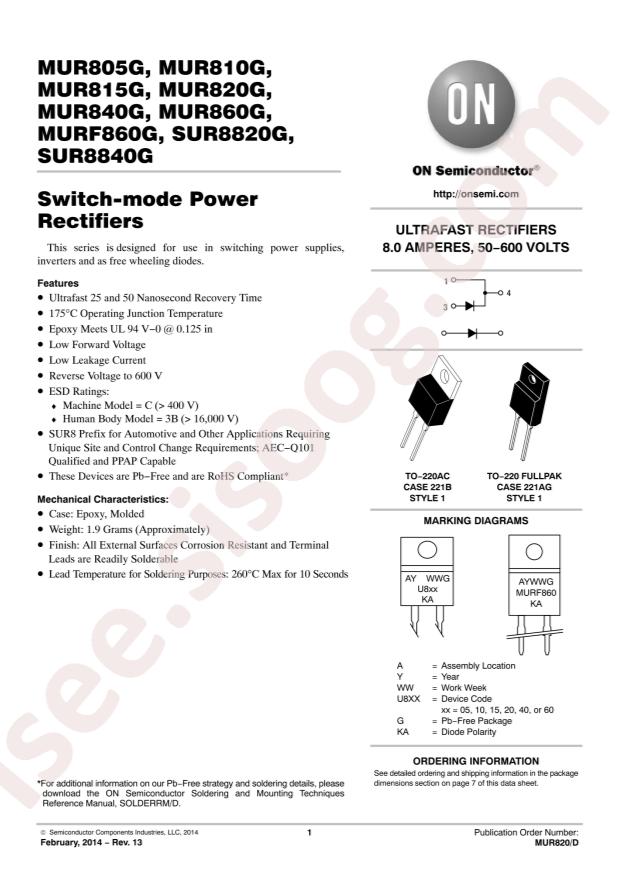

MUR805G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MUR805G |
|---|---|
| حجم فایل | 76.807 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت MUR805G |
دانلود دیتاشیت |
|---|
سایر مستندات
MUR805(10,15,20,40,60) 8 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi MUR805G
- Diode Configuration: Single
- Reverse Voltage (Vr): 50V
- Operating Temperature: -65°C~+175°C@(Tj)
- Forward Voltage (Vf@If): 975mV@8A
- Reverse Leakage Current: 5uA@50V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 8A
- Package: TO-220-2
- Manufacturer: onsemi
- Series: SWITCHMODE™
- Packaging: Tube
- Part Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 50V
- Current - Average Rectified (Io): 8A
- Voltage - Forward (Vf) (Max) @ If: 975mV @ 8A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 5µA @ 50V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-2
- Supplier Device Package: TO-220AC
- Operating Temperature - Junction: -65°C ~ 175°C
- Base Part Number: MUR80
- detail: Diode Standard 50V 8A Through Hole TO-220AC
