NCP1203P60G دیتاشیت

NCP1203P60G

مشخصات دیتاشیت

نام دیتاشیت NCP1203P60G
حجم فایل 98.8 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

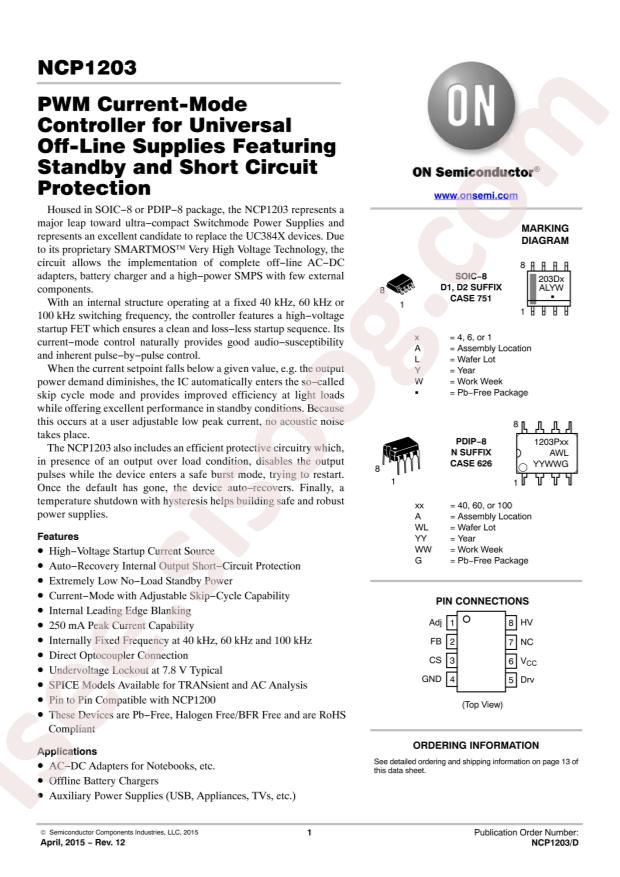

مشاهده دیتاشیت NCP1203P60G

دانلود دیتاشیت

سایر مستندات

NCP1203 15 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: onsemi NCP1203P60G
  • Duty Cycle: 80%
  • Supply Voltage: 7.8V~16V
  • Output Isolation: Isolation
  • Switching Frequency: 60kHz
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Package: DIP-8
  • Manufacturer: onsemi
  • Series: SMARTMOS™
  • Packaging: Tube
  • Part Status: Not For New Designs
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Voltage - Start Up: 12.8V
  • Voltage - Supply (Vcc/Vdd): 7.8V ~ 16V
  • Frequency - Switching: 60kHz
  • Fault Protection: Over Load, Over Temperature, Short Circuit
  • Control Features: -
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Base Part Number: NCP1203
  • detail: Converter Offline Flyback Topology 60kHz 8-PDIP
