دیتاشیت NCV565D2TG
مشخصات دیتاشیت
| نام دیتاشیت |
NCV565D2TG
|
| حجم فایل |
77.343
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات فنی
-
RoHS:
true
-
Feature:
Overcurrent Protection;Thermal Protection
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-

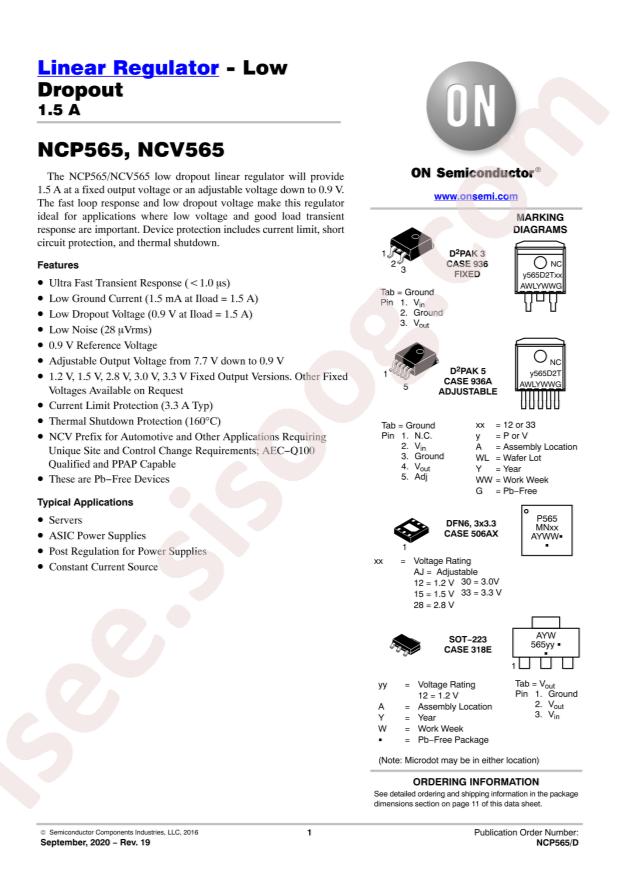

Datasheet:
onsemi NCV565D2TG
-
Output Type:
Adjustable
-
Output Current:
1.5A
-
Output Voltage:
0.9V~7.7V
-
Dropout Voltage:
1.3V@(1.5A)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
9V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
3mA
-
Power Supply Rejection Ratio (PSRR):
85dB@(120Hz)
-
Package:
D2PAK-5
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
9V
-
Voltage - Output (Min/Fixed):
0.9V
-
Voltage - Output (Max):
7.7V
-
Voltage Dropout (Max):
1.3V @ 1.5A
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
3mA
-
PSRR:
85dB ~ 75db (120Hz ~ 1kHz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Supplier Device Package:
D2PAK-5
-
Base Part Number:
NCV565
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A D2PAK-5
