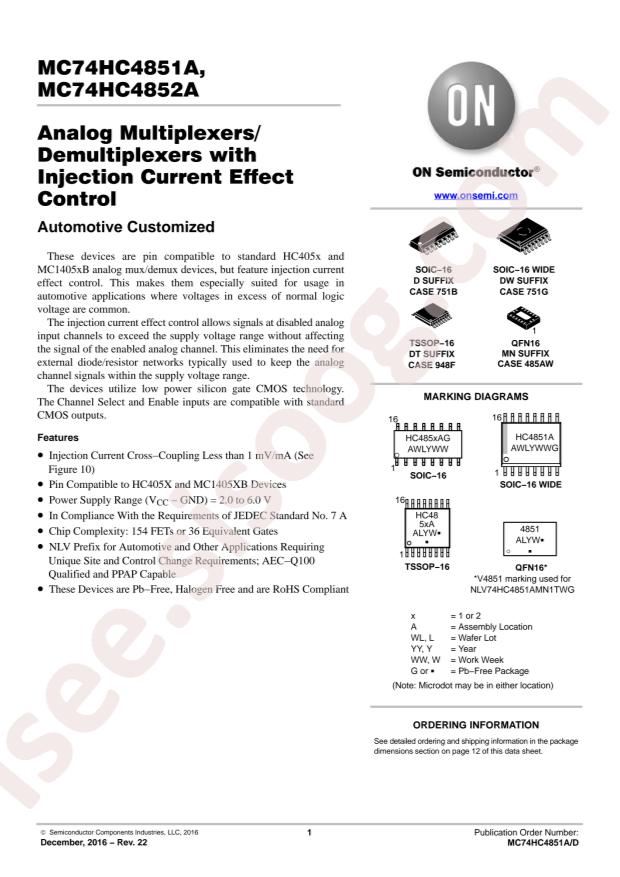

- دیتاشیت MC74HC4851ADWR2G
MC74HC4851ADWR2G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC74HC4851ADWR2G |
|---|---|
| حجم فایل | 81.534 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت MC74HC4851ADWR2G |
دانلود دیتاشیت |
|---|
سایر مستندات
MC74HC4851A, MC74HC4852A 16 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: onsemi MC74HC4851ADWR2G
- Package: SOP-16-300mil
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 400Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 2V ~ 6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 40pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: MC74HC4851
- detail: 1 Circuit IC Switch 8:1 400Ohm 16-SOIC
