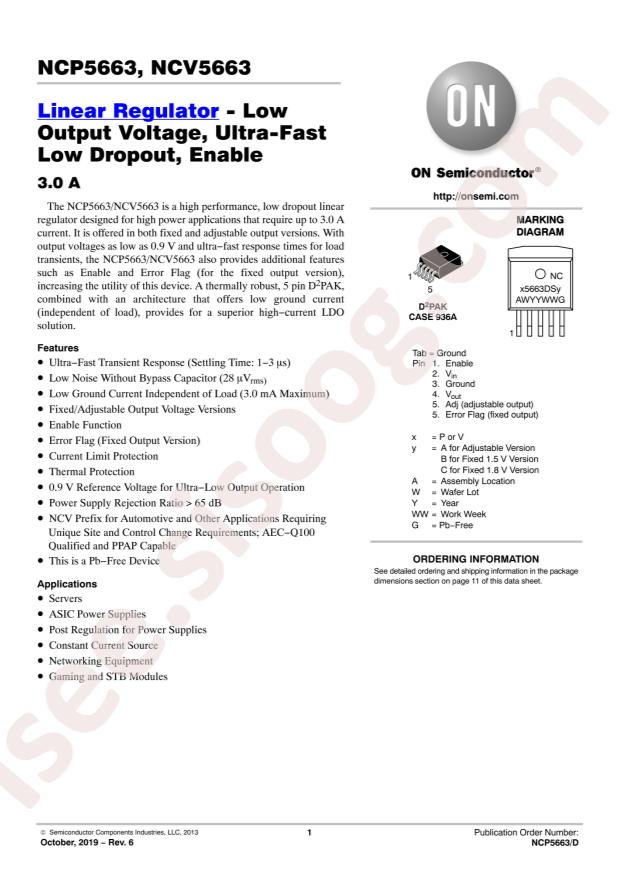

دیتاشیت NCP5663DS18G
مشخصات دیتاشیت
| نام دیتاشیت |
NCP5663DS18G
|
| حجم فایل |
75.89
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP5663DS18G
-
Output Current:
3A
-
Output Voltage:
1.8V
-
Dropout Voltage:
1.3V@(3A)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
9V
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Ground Current):
3mA
-
Package:
D2PAK
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
9V
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
1.3V @ 3A
-
Current - Output:
3A
-
Current - Quiescent (Iq):
3mA
-
PSRR:
70dB ~ 65dB (120Hz ~ 1kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Supplier Device Package:
D2PAK-5
-
Base Part Number:
NCP5663
-
detail:
Linear Voltage Regulator IC 1 Output 3A D2PAK-5
