TL431BILPG دیتاشیت

TL431BILPG

مشخصات دیتاشیت

نام دیتاشیت TL431BILPG
حجم فایل 84.277 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت TL431BILPG

دانلود دیتاشیت

سایر مستندات

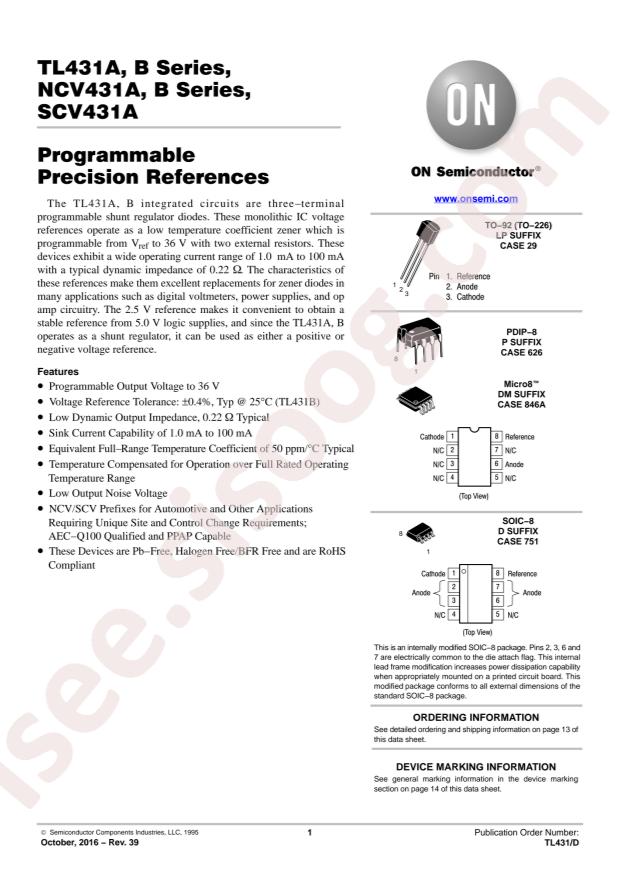

TL431(A, B), NCV431(A, B), SCV431A 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Voltage References
  • Datasheet: onsemi TL431BCLPG
  • Tolerance: ±0.4%
  • Output Type: Adjustable
  • Input Voltage: -
  • Output Current: 100mA
  • Output Voltage: 2.495V~36V
  • Reference Type: parallel connection
  • Supply Current: -
  • Noise - 10Hz to 10kHz: -
  • Operating Temperature: 0°C~+70°C@(Ta)
  • Noise - 1/10Hz to 10Hz: -
  • Temperature Coefficient: 50ppm/°C
  • Minimum Cathode Current for Regulation: 1mA

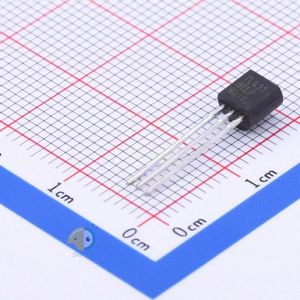

  • Package: TO-92-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • Voltage - Output (Min/Fixed): 2.495V
  • Voltage - Output (Max): 36V
  • Current - Output: 100mA
  • Noise - 0.1Hz to 10Hz: -
  • Voltage - Input: -
  • Current - Supply: -
  • Current - Cathode: 1mA
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • Supplier Device Package: TO-92-3
  • Base Part Number: TL431
  • detail: Shunt Voltage Reference IC 36V ±0.4% TO-92-3
