- دیتاشیت MUR1615CTG

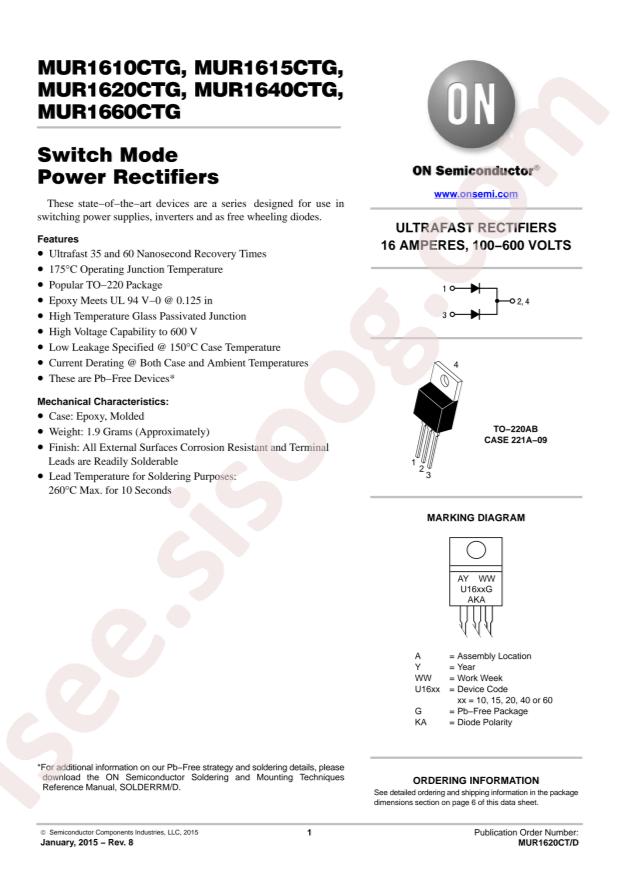

MUR1615CTG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MUR1615CTG |
|---|---|
| حجم فایل | 66.956 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت MUR1615CTG |
دانلود دیتاشیت |
|---|
سایر مستندات
MUR1610(15,20,40,60)CT 7 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: onsemi MUR1615CTG
- Diode Configuration: -
- Reverse Voltage (Vr): 150V
- Operating Temperature: -65°C~+175°C@(Tj)
- Forward Voltage (Vf@If): -
- Reverse Leakage Current: -
- Reverse Recovery Time (trr): -
- Average Rectified Current (Io): 8A
- Package: TO-220
- Manufacturer: onsemi
- Series: SWITCHMODE™
- Packaging: Tube
- Part Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150V
- Current - Average Rectified (Io) (per Diode): 8A
- Voltage - Forward (Vf) (Max) @ If: 975mV @ 8A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 5µA @ 150V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: MUR16
- detail: Diode Array 1 Pair Common Cathode Standard 150V 8A Through Hole TO-220-3
