MC74LVXT8051 دیتاشیت

MC74LVXT8051

مشخصات دیتاشیت

نام دیتاشیت MC74LVXT8051
حجم فایل 171.615 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

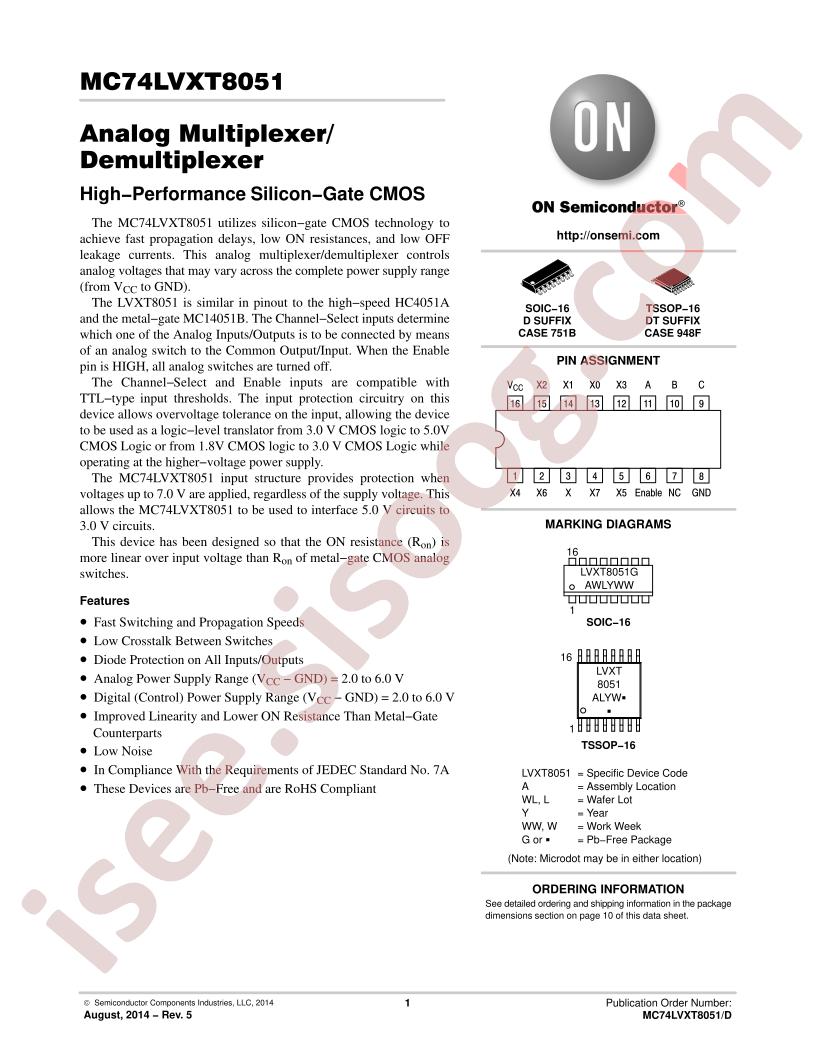

دانلود دیتاشیت MC74LVXT8051

دانلود دیتاشیت

سایر مستندات

MC74LVXT8051DTRG 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: onsemi MC74LVXT8051DG
  • Package: SOP-16
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Switch Circuit: -
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Number of Circuits: 1
  • On-State Resistance (Max): 25Ohm
  • Channel-to-Channel Matching (ΔRon): 8Ohm
  • Voltage - Supply, Single (V+): 2V ~ 6V
  • Voltage - Supply, Dual (V±): -
  • Switch Time (Ton, Toff) (Max): -
  • -3db Bandwidth: 80MHz
  • Charge Injection: -
  • Channel Capacitance (CS(off), CD(off)): 10pF
  • Current - Leakage (IS(off)) (Max): 100nA
  • Crosstalk: -60dB @ 1MHz
  • Operating Temperature: -55°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: MC74LVXT8051
  • detail: 1 Circuit IC Switch 8:1 25Ohm 16-SOIC
