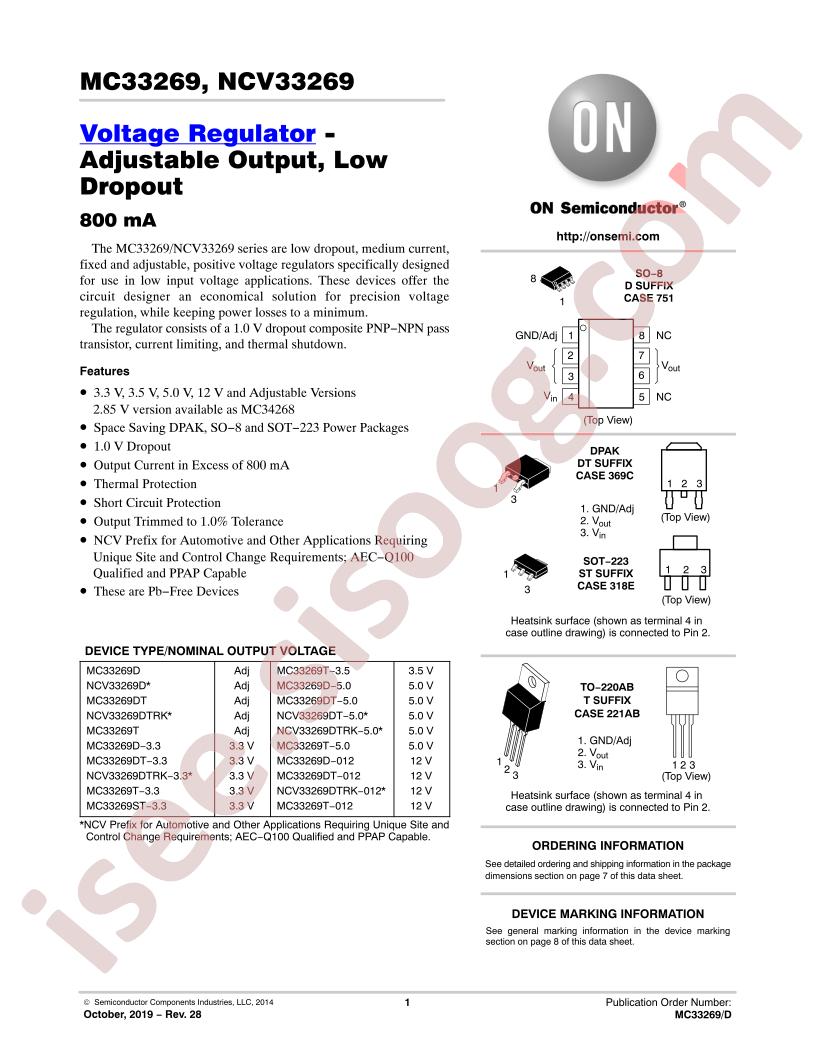

دیتاشیت MC33269, NCV33269

MC33269, NCV33269

مشخصات دیتاشیت

نام دیتاشیت MC33269, NCV33269
حجم فایل 230.024 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

MC33269, NCV33269

دانلود دیتاشیت

سایر مستندات

MC33269TG 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi MC33269T-012G
  • Output Current: 800mA
  • Output Voltage: 12V~12V
  • Dropout Voltage: 1.35V@(800mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 20V
  • Operating Temperature: -40°C~+125°C
  • Power Supply Rejection Ratio (PSRR): 55dB@(120Hz)
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): 20V
  • Voltage - Output (Min/Fixed): 1.25V
  • Voltage - Output (Max): 18.65V
  • Voltage Dropout (Max): 1.35V @ 800mA
  • Current - Output: 800mA
  • PSRR: 55dB (120Hz)
  • Control Features: -
  • Protection Features: Over Temperature, Short Circuit
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: MC33269
  • detail: Linear Voltage Regulator IC 1 Output 800mA TO-220AB
