NGTG15N60S1EG دیتاشیت

NGTG15N60S1EG

مشخصات دیتاشیت

نام دیتاشیت NGTG15N60S1EG
حجم فایل 79.751 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت NGTG15N60S1EG

دانلود دیتاشیت

سایر مستندات

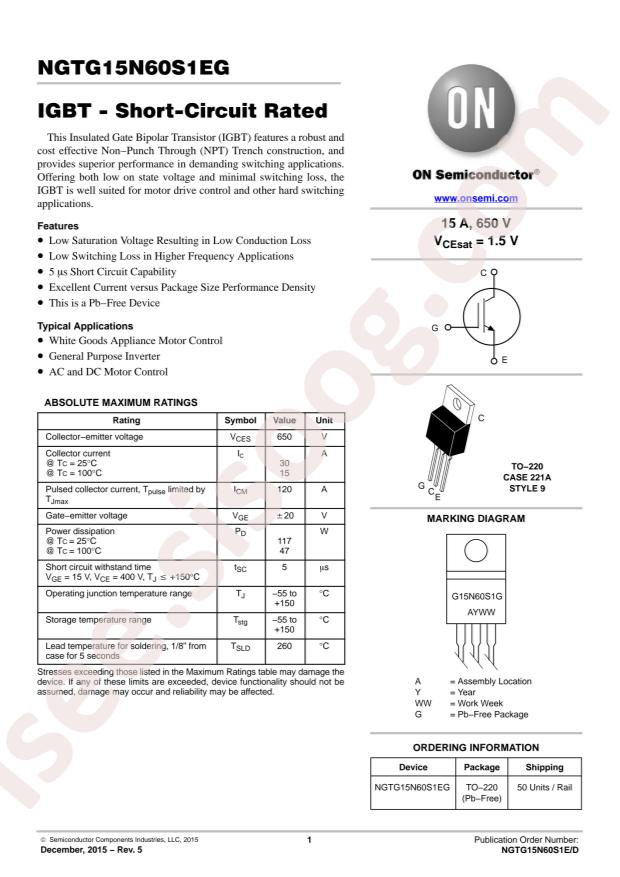

NGTG15N60S1EG 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: onsemi NGTG15N60S1EG
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: NPT
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 30A
  • Current - Collector Pulsed (Icm): 120A
  • Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 15A
  • Power - Max: 117W
  • Switching Energy: 550µJ (on), 350µJ (off)
  • Input Type: Standard
  • Gate Charge: 88nC
  • Td (on/off) @ 25°C: 65ns/170ns
  • Test Condition: 400V, 15A, 22Ohm, 15V
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220
  • Base Part Number: NGTG15
  • detail: IGBT NPT 600V 30A 117W Through Hole TO-220
