دیتاشیت FGH25T120SMD-F155

مشخصات دیتاشیت

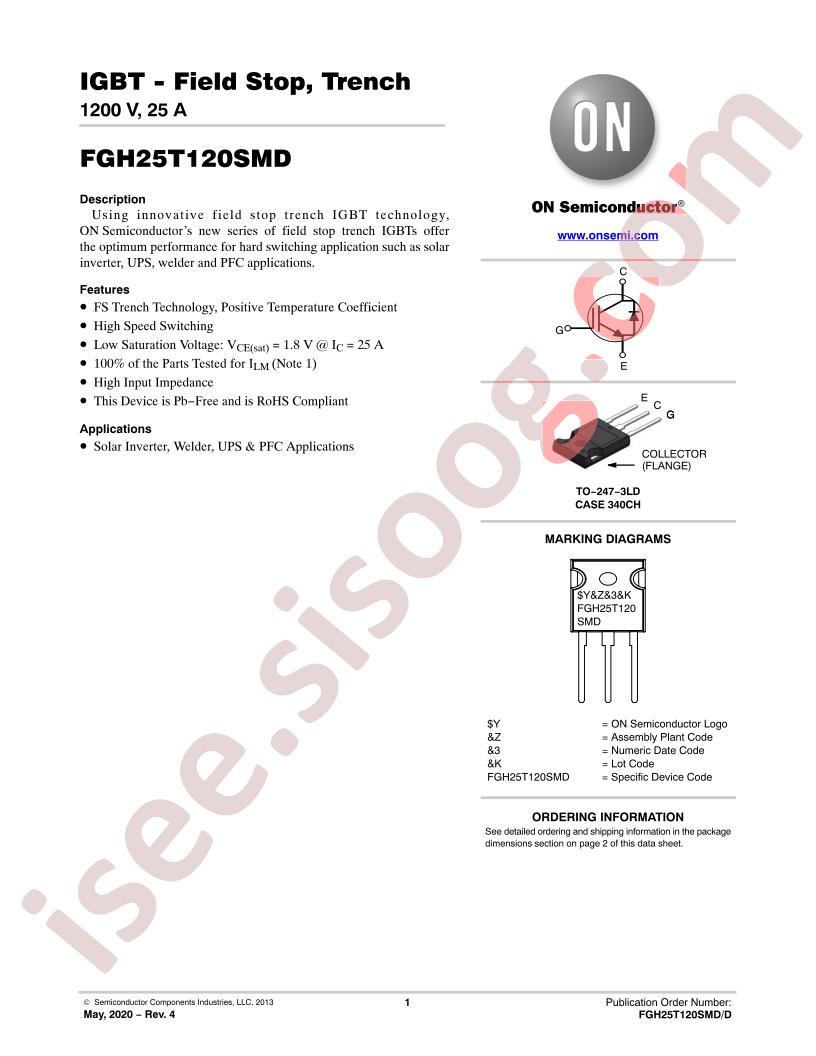

دانلود دیتاشیت FGH25T120SMD	FGH25T120SMD Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Tube
Part Status: Active
IGBT Type: Trench Field Stop
Voltage - Collector Emitter Breakdown (Max): 1200V
Current - Collector (Ic) (Max): 50A
Current - Collector Pulsed (Icm): 100A
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 25A
Power - Max: 428W
Switching Energy: 1.74mJ (on), 560µJ (off)
Input Type: Standard
Gate Charge: 225nC
Td (on/off) @ 25°C: 40ns/490ns
Test Condition: 600V, 25A, 23Ohm, 15V
Reverse Recovery Time (trr): 60ns
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-247-3
Supplier Device Package: TO-247 Long Leads
Base Part Number: FGH25
detail: IGBT Trench Field Stop 1200V 50A 428W Through Hole TO-247 Long Leads
