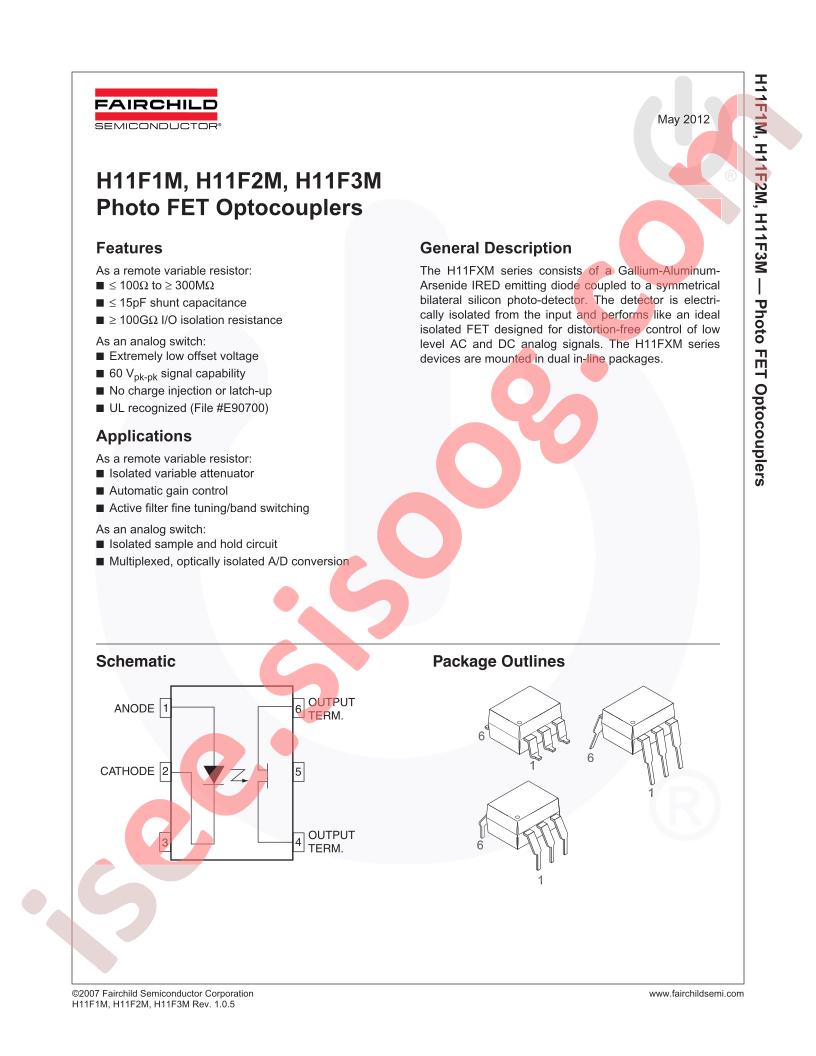

H11F1VM دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
H11F1VM
|
|
حجم فایل
|
2127.239
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Phototransistor Output
-
Datasheet:
onsemi H11F1VM
-
Fall time:
-
-
Rise time:
-
-
Output Type:
FET
-
Output Current:
-
-
Forward Voltage:
1.3V
-
Reverse Voltage:
5V
-
Number of Outputs:
1
-
Input voltage type:
DC
-
Operating Temperature:
-40°C~+100°C
-
Receiving End Voltage:
-
-
Isolation Voltage(rms):
7500V
-
Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF):
-
-
Package:
DIP-6
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Number of Channels:
1
-
Voltage - Isolation:
7500Vpk
-
Current Transfer Ratio (Min):
-
-
Current Transfer Ratio (Max):
-
-
Turn On / Turn Off Time (Typ):
45µs, 45µs (Max)
-
Rise / Fall Time (Typ):
-
-
Input Type:
DC
-
Voltage - Output (Max):
30V
-
Current - Output / Channel:
-
-
Voltage - Forward (Vf) (Typ):
1.3V
-
Current - DC Forward (If) (Max):
60mA
-
Vce Saturation (Max):
-
-
Mounting Type:
Through Hole
-
Package / Case:
6-DIP (0.300", 7.62mm)
-
Supplier Device Package:
6-DIP
-
Base Part Number:
H11F
-
detail:
Optoisolator MOSFET Output 7500Vpk 1 Channel 6-DIP
