دیتاشیت NCV2574DW-ADJR2G
مشخصات دیتاشیت
| نام دیتاشیت | NCV2574DW-ADJR2G |
|---|---|
| حجم فایل | 102.904 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
NCV2574DW-ADJR2G |
دانلود دیتاشیت |
|---|
سایر مستندات

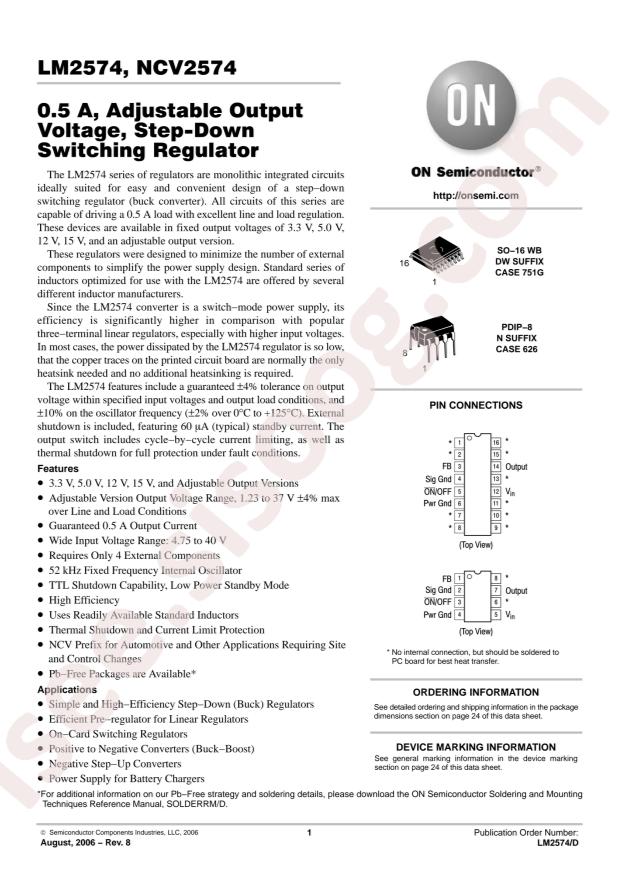

LM2574, NCV2574 Series 26 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType;Step-down type;Buck-boost type
- Topology: Step-down;Boost;Step-down-Boost
- Datasheet: onsemi NCV2574DW-ADJR2G
- Output Type: Adjustable
- Input Voltage: 4.75V~40V
- Output Voltage: 1.23V~37V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 500mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOIC-16-Wide
- Manufacturer: onsemi
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Output Configuration: Positive or Negative
- Voltage - Input (Min): 4.75V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.23V
- Voltage - Output (Max): 37V
- Current - Output: 500mA
- Frequency - Switching: 52kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Base Part Number: NCV2574
- detail: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 500mA 16-SOIC (0.295", 7.50mm Width)
