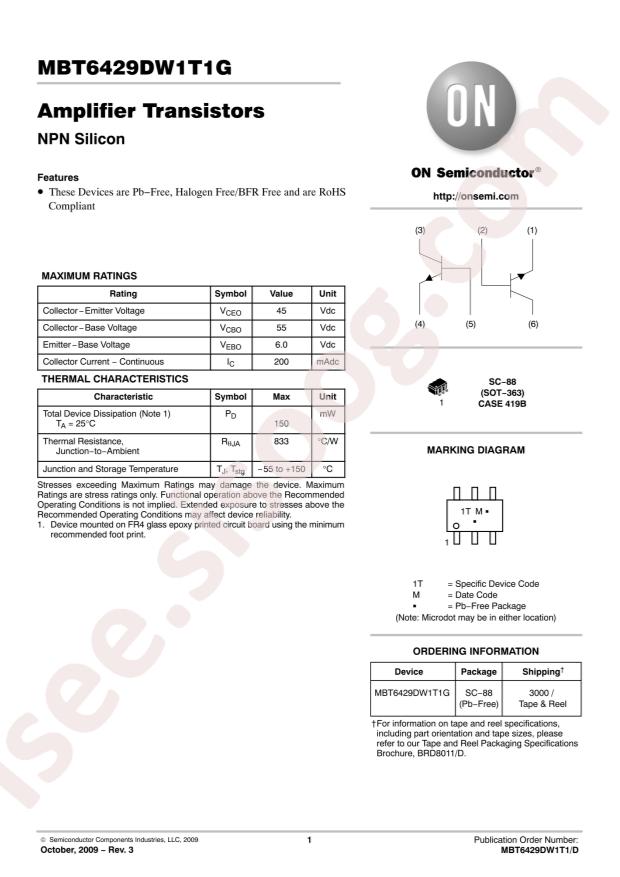

MBT6429DW1T1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MBT6429DW1T1G
|
|
حجم فایل
|
65.936
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi MBT6429DW1T1G
-
Transistor Type:
2 NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
200mA
-
Power Dissipation (Pd):
150mW
-
Transition Frequency (fT):
700MHz
-
DC Current Gain (hFE@Ic,Vce):
500@100uA,5V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
45V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
600mV@5mA,100mA
-
Package:
SC-70-6
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
200mA
-
Voltage - Collector Emitter Breakdown (Max):
45V
-
Vce Saturation (Max) @ Ib, Ic:
600mV @ 5mA, 100mA
-
Current - Collector Cutoff (Max):
100nA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
500 @ 100µA, 5V
-
Power - Max:
150mW
-
Frequency - Transition:
700MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Supplier Device Package:
SC-88/SC70-6/SOT-363
-
Base Part Number:
MBT6429
-
detail:
Bipolar (BJT) Transistor Array 2 NPN (Dual) 45V 200mA 700MHz 150mW Surface Mount SC-88/SC70-6/SOT-363
