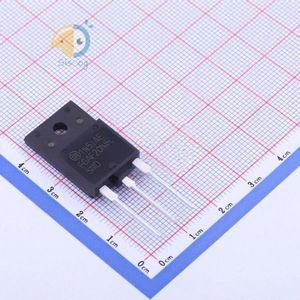

FGAF20N60SMD دیتاشیت

FGAF20N60SMD

مشخصات دیتاشیت

نام دیتاشیت FGAF20N60SMD
حجم فایل 1083.748 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

مشاهده دیتاشیت FGAF20N60SMD

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Type: Field Stop
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Operating Temperature: 55°C~+175°C@(Tj)
  • Collector Current (Ic): 40A
  • Power Dissipation (Pd): 75W
  • Turn?on Delay Time (Td(on)): 12ns
  • Total Gate Charge (Qg@Ic,Vge): 64nC
  • Turn?off Delay Time (Td(off)): 91ns
  • Pulsed Collector Current (Icm): 60A
  • Diode Reverse Recovery Time (Trr): 26.7ns
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): 1.7V@15V,20A
  • Package: TO-3PF
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 40A
  • Current - Collector Pulsed (Icm): 60A
  • Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 20A
  • Power - Max: 75W
  • Switching Energy: 452µJ (on), 141µJ (off)
  • Input Type: Standard
  • Gate Charge: 64nC
  • Td (on/off) @ 25°C: 12ns/91ns
  • Test Condition: 400V, 20A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 26.7ns
  • Mounting Type: Through Hole
  • Package / Case: TO-3P-3 Full Pack
  • Supplier Device Package: TO-3PF
  • Base Part Number: FGAF2
  • detail: IGBT Field Stop 600V 40A 75W Through Hole TO-3PF
