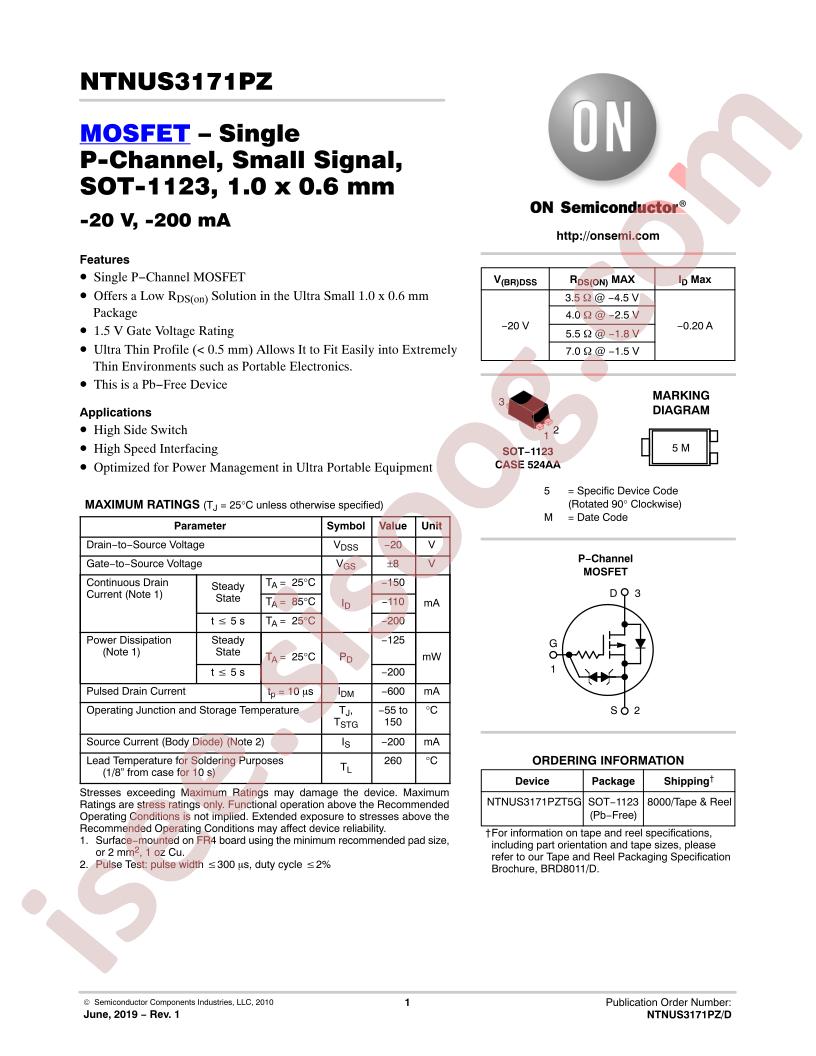

دیتاشیت NTNUS3171PZT5G
مشخصات دیتاشیت
| نام دیتاشیت |
NTNUS3171PZ
|
| حجم فایل |
110.436
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTNUS3171PZT5G
-
Power Dissipation (Pd):
125mW
-
Drain Source Voltage (Vdss):
20V
-
Continuous Drain Current (Id):
150mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.5Ω@4.5V,100mA
-
Package:
SOT1123
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
150mA (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
1.2V, 4.5V
-
Rds On (Max) @ Id, Vgs:
3.5Ohm @ 100mA, 4.5V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Vgs (Max):
±8V
-
Input Capacitance (Ciss) (Max) @ Vds:
13pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
125mW (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-1123
-
Package / Case:
SOT-1123
-
Base Part Number:
NTNUS3
-
detail:
P-Channel 20V 150mA (Ta) 125mW (Ta) Surface Mount SOT-1123
