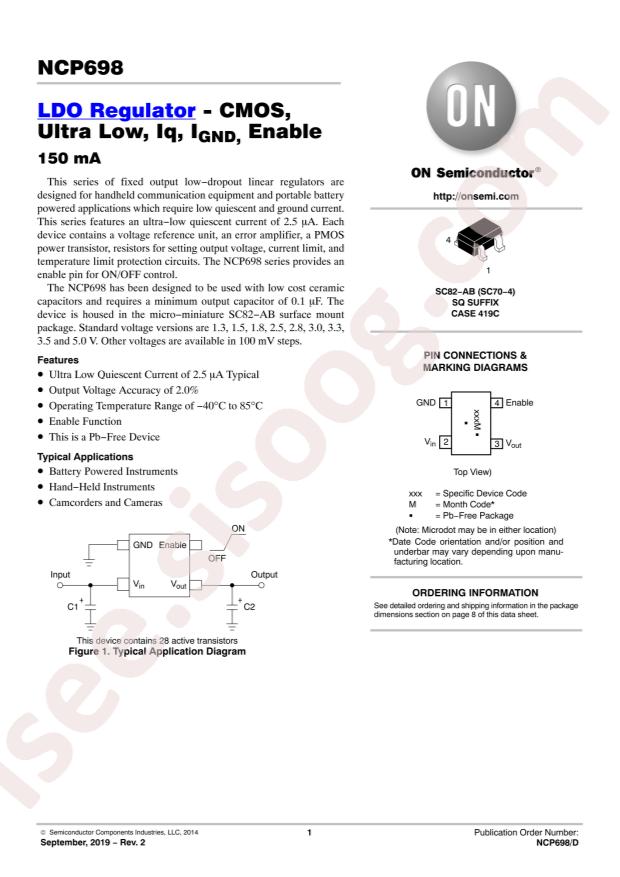

NCP698SQ18T1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCP698SQ18T1G
|
|
حجم فایل
|
73.139
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP698SQ18T1G
-
Output Type:
Fixed
-
Output Current:
150mA
-
Output Voltage:
1.8V
-
Dropout Voltage:
900mV@(150mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Ground Current):
6uA
-
Power Supply Rejection Ratio (PSRR):
-
-
Package:
SC-82AB
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.9V @ 150mA
-
Current - Output:
150mA
-
Current - Quiescent (Iq):
6µA
-
PSRR:
-
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-82A, SOT-343
-
Supplier Device Package:
SC-82AB
-
Base Part Number:
NCP698
-
detail:
Linear Voltage Regulator IC 1 Output 150mA SC-82AB
