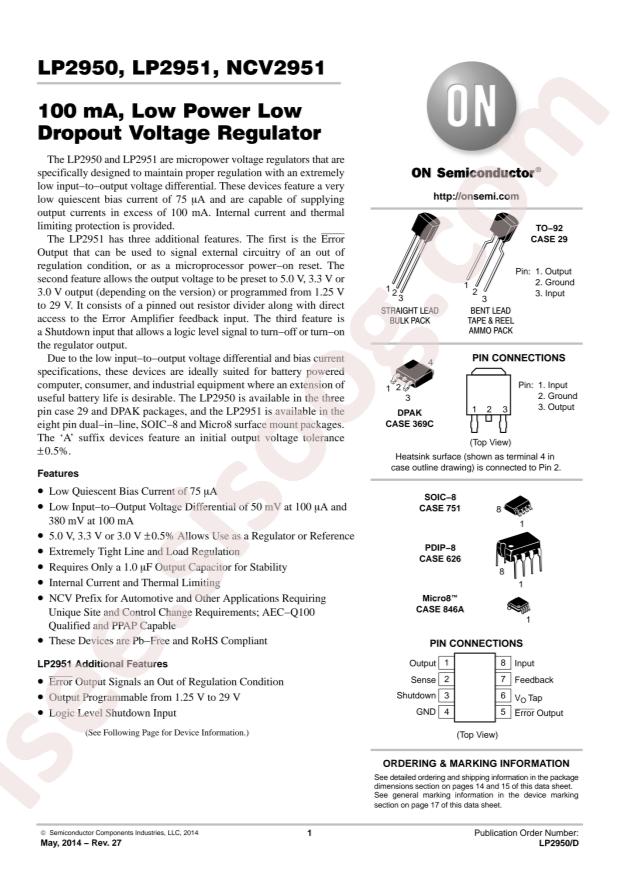

دیتاشیت LP2951CDR2G
مشخصات دیتاشیت
| نام دیتاشیت | LP2951CDR2G |
|---|---|
| حجم فایل | 99.541 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
LP2951CDR2G |
دانلود دیتاشیت |
|---|
سایر مستندات
LP2950, LP2951, NCV2951 22 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi LP2951CDR2G
- Output Type: -
- Output Current: 100mA
- Output Voltage: 1.235V~30V
- Dropout Voltage: 0.45V@(100mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 120uA
- Package: SOP-8
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 30V
- Voltage - Output (Min/Fixed): 1.235V (5V)
- Voltage - Output (Max): 30V
- Voltage Dropout (Max): 0.45V @ 100mA
- Current - Output: 100mA
- Current - Quiescent (Iq): 120µA
- Current - Supply (Max): 12mA
- PSRR: -
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Base Part Number: LP295
- detail: Linear Voltage Regulator IC 1 Output 100mA 8-SOIC
