دیتاشیت BAS70-04LT1G

مشخصات دیتاشیت

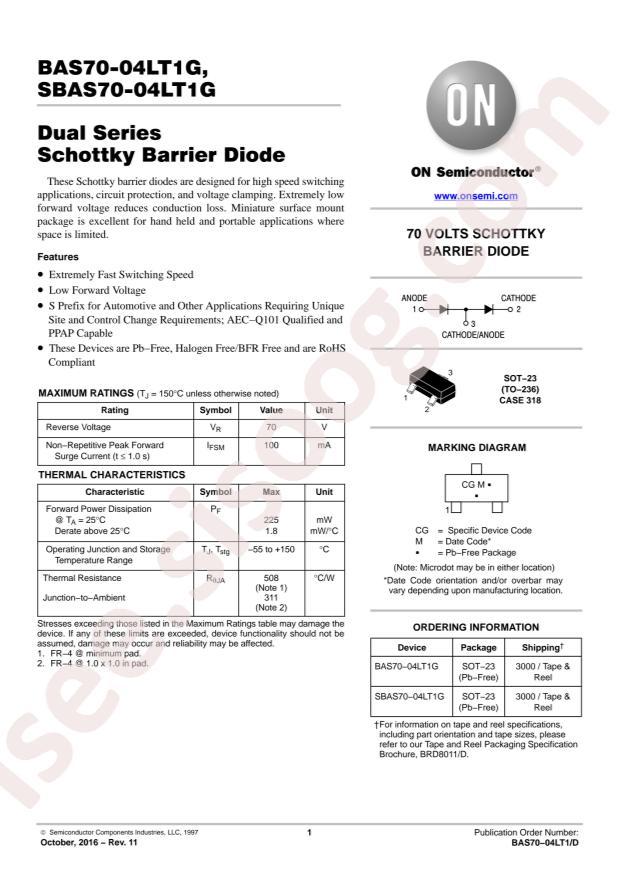

دانلود دیتاشیت BAS70−04LT1G, SBAS70−04LT1G	BAS70−04LT1G, SBAS70−04LT1G Datasheet

RoHS: true
Category: Diodes/Schottky Barrier Diodes (SBD)
Datasheet: onsemi BAS70-04LT1G
Diode Configuration: Dual
Reverse Voltage (Vr): 70V
Forward Voltage (Vf@If): 1V@15mA
Reverse Leakage Current (Ir): 10uA@70V
Average Rectified Current (Io): 100mA
Package: SOT-23(TO-236)
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Diode Type: Schottky
Voltage - DC Reverse (Vr) (Max): 70V
Current - Average Rectified (Io) (per Diode): 100mA (DC)
Voltage - Forward (Vf) (Max) @ If: 1V @ 15mA
Speed: Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr: 10µA @ 70V
Operating Temperature - Junction: -55°C ~ 150°C
Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3
Supplier Device Package: SOT-23-3 (TO-236)
Base Part Number: BAS70
detail: Diode Array 1 Pair Series Connection Schottky 70V 100mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
