BCV71 دیتاشیت

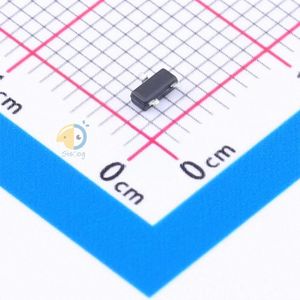

BCV71

مشخصات دیتاشیت

نام دیتاشیت BCV71
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

مشاهده دیتاشیت BCV71

دانلود دیتاشیت

سایر مستندات

BCV71 5 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi BCV71
  • Transistor Type: NPN
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 500mA
  • DC Current Gain (hFE@Ic,Vce): 110@2mA,5V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 60V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 250mV@500?A,10mA
  • Package: SOT-23-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 500mA
  • Voltage - Collector Emitter Breakdown (Max): 60V
  • Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 110 @ 2mA, 5V
  • Power - Max: 350mW
  • Frequency - Transition: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3
  • Base Part Number: BCV71
  • detail: Bipolar (BJT) Transistor NPN 60V 500mA 350mW Surface Mount SOT-23-3
