دیتاشیت NCP5304DR2G

NCP5304

مشخصات دیتاشیت

نام دیتاشیت NCP5304
حجم فایل 111.78 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت NCP5304

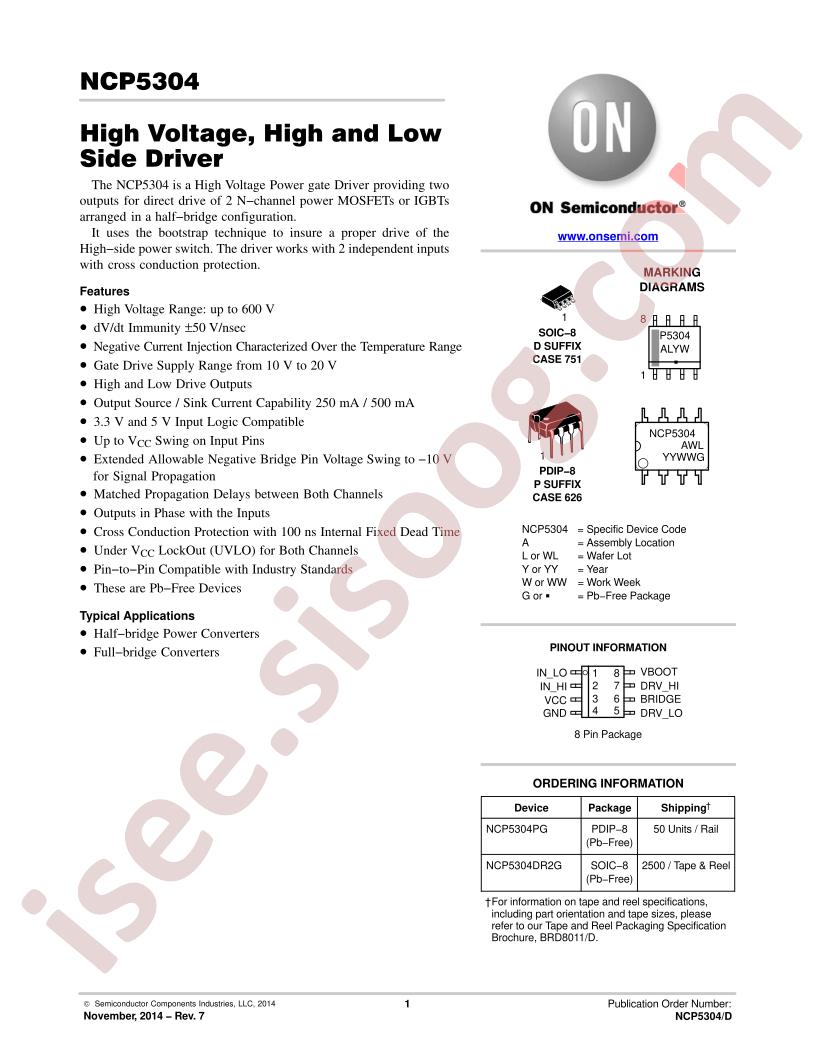

NCP5304 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Driven Configuration: Half-Bridge
  • Channel Type: Synchronous
  • Number of Drivers: 2
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 10V ~ 20V
  • Logic Voltage - VIL, VIH: 0.8V, 2.3V
  • Current - Peak Output (Source, Sink): 250mA, 500mA
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 85ns, 35ns
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: NCP5304
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-SOIC
