NSVJ3557SA3T1G دیتاشیت

NSVJ3557SA3T1G

مشخصات دیتاشیت

نام دیتاشیت NSVJ3557SA3T1G
حجم فایل 54.522 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

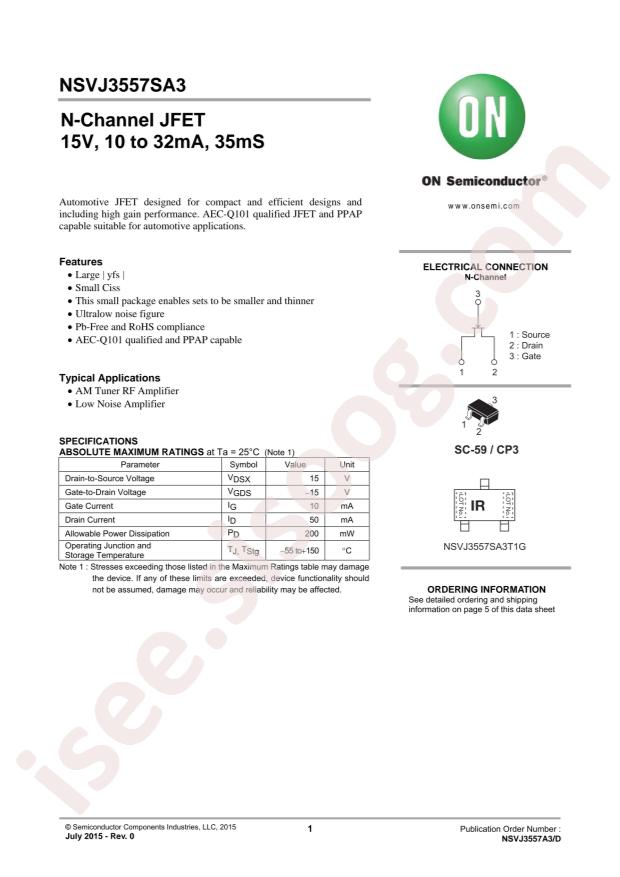

مشاهده دیتاشیت NSVJ3557SA3T1G

دانلود دیتاشیت

سایر مستندات

NSVJ3557SA3 5 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/JFETs
  • Datasheet: onsemi NSVJ3557SA3T1G

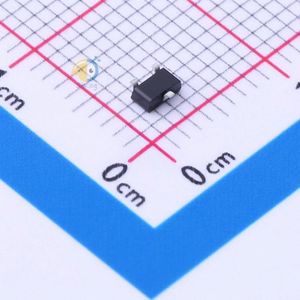

  • Package: SC-59-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Voltage - Breakdown (V(BR)GSS): 15V
  • Drain to Source Voltage (Vdss): 15V
  • Current - Drain (Idss) @ Vds (Vgs=0): 10mA @ 5V
  • Current Drain (Id) - Max: 50mA
  • Voltage - Cutoff (VGS off) @ Id: 300mV @ 100µA
  • Input Capacitance (Ciss) (Max) @ Vds: 10pF @ 5V
  • Power - Max: 200mW
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SC-59-3/CP3
  • Base Part Number: NSVJ35
  • detail: JFET N-Channel 15V 50mA 200mW Surface Mount SC-59-3/CP3
