NC7WP02K8X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

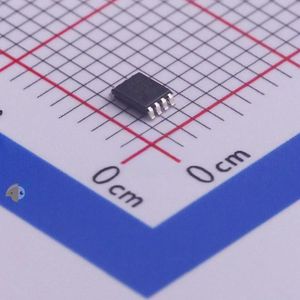

NC7WP02K8X
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Series:
7WP
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi NC7WP02K8X
-
Sink Current:
2.6mA
-
Source Current:
2.6mA
-
Supply Voltage:
0.9V~3.6V
-
Logic Gate Type:
-
-
Number of Channels:
2
-
Low Level Range (VIL):
0.7V~0.9V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
1.6V~2.1V
-
Propagation Delay Time:
7ns@3.3V,30pF
-
Quiescent Current (Max):
900nA
-
Package:
US-8
-
Manufacturer:
onsemi
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
NOR Gate
-
Number of Circuits:
2
-
Number of Inputs:
2
-
Features:
-
-
Voltage - Supply:
0.9V ~ 3.6V
-
Current - Quiescent (Max):
900nA
-
Current - Output High, Low:
2.6mA, 2.6mA
-
Logic Level - Low:
0.7V ~ 0.9V
-
Logic Level - High:
1.6V ~ 2.1V
-
Max Propagation Delay @ V, Max CL:
7ns @ 3.3V, 30pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
US8
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
Base Part Number:
NC7WP0
-
detail:
NOR Gate IC 2 Channel US8
