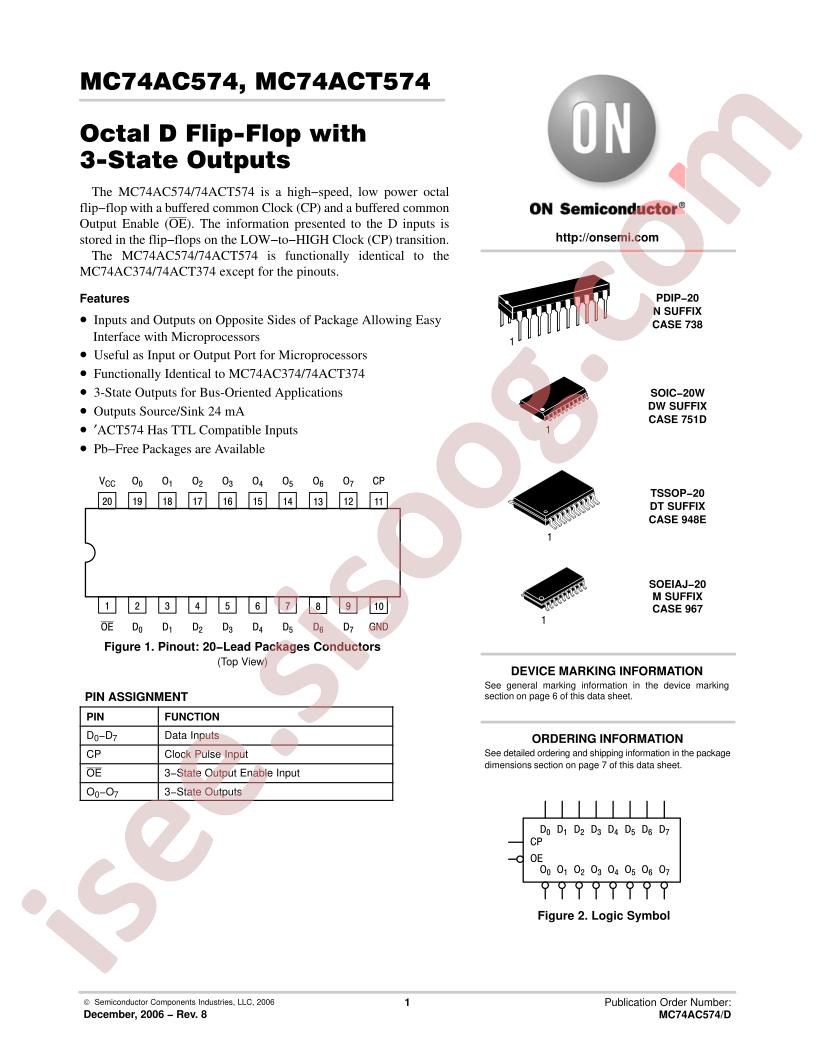

- دیتاشیت MC74AC574, MC74ACT574
MC74AC574, MC74ACT574 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC74AC574, MC74ACT574 |
|---|---|
| حجم فایل | 118.115 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت MC74AC574, MC74ACT574 |
دانلود دیتاشیت |
|---|
سایر مستندات
MC74ACT574DWR2G 10 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74AC
- Category: Logic ICs/Flip Flops
- Function: Standard
- Datasheet: onsemi MC74AC574DWR2G
- Output Type: Tri-State;Non-Inverted
- Sink Current: 24mA
- Trigger Type: 上升沿
- Source Current: 24mA
- Supply Voltage: 2V~6V
- Clock Frequency: 95MHz
- Input Capacitance: 4.5pF
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 9.5ns@5V,50pF
- Package: SOIC-20-300mil
- Manufacturer: onsemi
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Number of Elements: 1
- Number of Bits per Element: 8
- Max Propagation Delay @ V, Max CL: 9.5ns @ 5V, 50pF
- Current - Output High, Low: 24mA, 24mA
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Iq): 8µA
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 20-SOIC
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
- Base Part Number: MC74AC574
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
